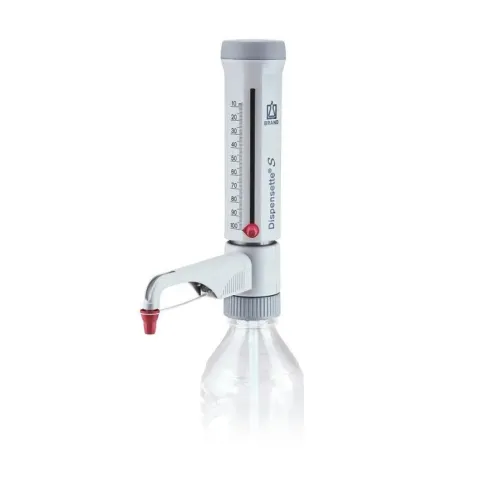

BrandTech 4600170 Bottle-Top Dispensers, Analog, without Recirculation Valve 10-100 ml

Whether you are dispensing solvents, acids, alkalis or saline solutions - the Dispensette S bottle-top dispenser makes it easy, safe and efficient. With both the Dispensette S and Dispensette S Organic, you will always have the right dispenser at hand for a wide range of media. For efficient volume adjustment, you can choose between digital and analog adjustment, or fixed volume. Do you dispense long series, sterile applications or moisture-sensitive media? With numerous accessory options, the Dispensette S also offers efficient solutions for special applications.

Dispensette S (red color-code): Ideal for dispensing aggressive reagents, including concentrated bases and acids such as H3PO4, H2SO4 (except e.g., HCl, HNO3 and HF), saline solutions, as well as many organic solvents.

Analog-adjustable Model: Rapid and safe volume setting with new internal scalloped track. Simple calibration adjustment with a supplied tool.

Limitations of use:

• Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
• Vapor pressure up to max. 600 mbar. Aspirate slowly above 300 mbar, in order to prevent the liquid from boiling
• Kinematic viscosity up to 500 mm*2 /s (dynamic viscosity [mPas] = kinematic viscosity [mm*2 /s] x density [g/cm*3)
• Density up to 2.2 g/cm*3

Items supplied

Dispensette S bottle-top dispenser, for threaded bottles GL 45, DE-M marking, with performance certificate, telescoping filling tube, recirculation valve and recirculation tube (optional), mounting tool and adapters of polypropylene (Nominal volume: 1, 2, 5, 10ml: GL 24-25, GL 28/S28, GL 32-33, GL38, S40 / Nominal volume 25, 50, 100ml: GL 32-33, GL38, S40)

Technical Note
