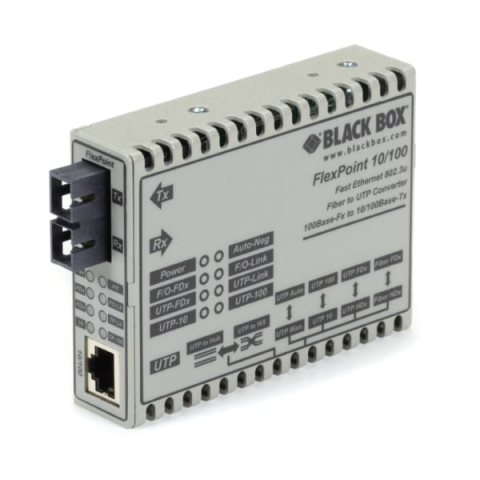

Black Box LMC100A-SC-R3 FlexPoint Fast Ethernet (100-Mbps) Media Converter - 10/100-Mbps Copper to 100-Mbps Multimode Fiber, 1300nm, 2km, SC

Converts 10BASE-T or 100BASE-TX to 100-Mbps Multimode fiber.

FlexPoint Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.

The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.

Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.

Features:

• Easy installation and transparent operation. No software required.
• Links copper-based 10BASE-T or 100BASE-TX to 100BASE-FX.
• Functions as a Layer 2 switch. Each port is capable of learning and aging up to 1024 MAC addresses.
• Sends data up to 2 kilometers (62.1 mi.).
• Complies with 10BASE-T, 100BASE-TX, and 100BASE-FX IEEE 802.3 standards.
• Both UTP and fiber ports support full- and half-duplex operation.
• UTP port autosenses 10- or 100-Mbps speeds.
• Manual override switch for extra control over fiber and UTP ports.
• Crossover switch provides easy connections to hubs or switches.
• Hardware available for mounting converter to a wall or a DIN rail.
• Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.

This product works with:

• Gb ETH Mode CONV 1000Mb MM/1000Mb SM 850/1300nm 0.3km/5km (2) SC
• Gb ETH MED CONV 1000-Mbps COP to 1000-Mbps MM FBR 850nm 0.3km SC
• Power Converter - Standalone, DC-DC, 18-72VDC
• Rackmount Kit - Modular Media, 5-Position
• Wallmount Kit - FlexPoint Media Converters
• DIN Rail Mounting Kit - FlexPoint Media Converter
• ETH MED CONV 10-Mbps Copper to 10-Mbps ThinNet
• Media Converter Kit - 10BASE2 Coax to 10BASE-FL
• ETH MED CONV 10-Mbps Copper to 10-Mbps MM FBR, 850nm, 2km, ST
• FST ETH MED CONV 100-Mbps COP to 100-Mbps MM FBR 1310nm 5km ST
