Black Box LB532A-L-R2 Industrial Ethernet Extender Local Unit G.SHDSL 2-Wire 15-Mbps GSA TAA

Ethernet extension, especially in harsh environments, is now incredibly easy and economical. You can connect industrial Ethernet devices and remote LANs over your existing CATx voice-grade twisted pair cable at speeds and distances you didn't think possible.

Get the best possible speed

Make connections at speeds up to 15 Mbps and across distances ranging from 0 to 6.4 miles (10km). An auto-rate feature senses the ideal speed/distance configuration and ensures that you achieve the highest possible speed on each connection. While you can configure your desired rate via DIP switches or Telnet, if conditions aren't ideal, the extender will automatically set the rate.

Withstands temperature extremes

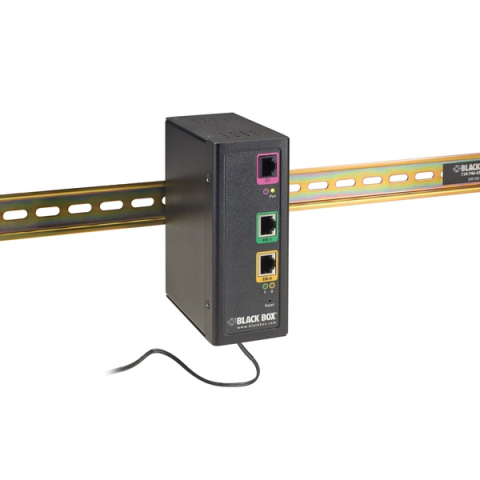

This rugged extender can withstand temperature extremes of -40° F to 185° F so you can use it to connect Ethernet-enabled industrial devices such as sensors, cameras, security equipment, etc. It's ideal for use in transportation systems, manufacturing, and other harsh, remote environments. The aluminum enclosure meets IP40 specifications and a DIN rail clip is included. The unit is designed to be used in a controlled environment and not to be exposed to the weather.

Use in pairs

This local unit is designed to be used in pairs with the remote unit.

Quadruple your connections

The remote extender features a built-in, four-port, auto-sensing 10-/100BASE-TX Ethernet switch so you can connect four devices instead of one. A built-in auto-MDIX (automatic medium-dependent interface crossover) means you can use either straight-through or crossover cable, whichever is handy, to connect your Ethernet devices.

Easy setup

Plug-and-play means that you'll be up and running in seconds. The auto-MDIX also detects the polarity of the cable on each port and automatically configures the signaling to match. There's no user configuration on your part whatsoever.

The extender operates at layer 2 and transparently passes all higher-layer protocols including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO. In addition, the extender features automatic learning, aging, and filtering to keep local traffic local, ensuring efficient utilization of the long-range link.

Features:

• Extend your industrial 10/100BASE-TX Ethernet connections at speeds up to 15 Mbps and get the best combination of speed and distance
• Use to connect industrial Ethernet devices and remote LANs up to 6.4 miles apart
• Use your existing CAT5/5e/6 voice-grade twisted pair cable
• Meets IP 40 specs and withstands temperatures of -40° F to 185° F
• Plug-and-play!
• Autosenses the data rate up to 5.696 Mbps
• Select rates via DIP switches or console Telnet
• Built-in auto-MDIX

For more information, please see Data Sheet
