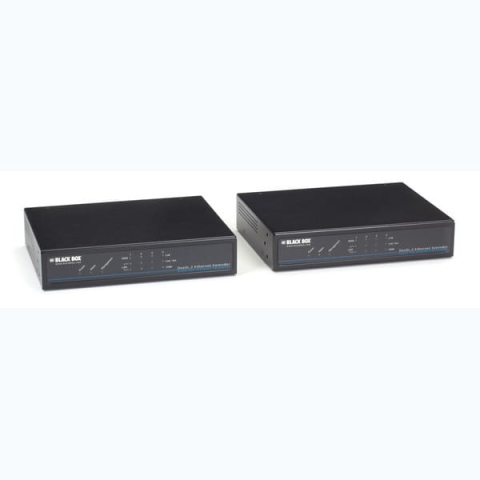

Black Box LB524A-KIT-R2 LB520 Series Managed Ethernet Extender Kit - 4-Wire, 4-Port

Double the speed of your Ethernet extension link using 4 wires.

Features:

• Four Ethernet ports
• Support QoS, CoS, and VLAN
• A built-in console port makes setup a snap.
• An advanced auto-rate algorithm automatically determines the best possible baud rate for each connection and sets up the extender without the need for user interface.
• The unit has a built-in MDI-X switch, so it'll work with either a straight-through cable or a crossover cable.
• Plug-and-play! Just plug it in, power it on, and it's up and running.

This kit includes a pair of auto-rate Ethernet extenders, using a standard 2-wire connection, which simplifies your life and provides cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure.

You'll be able to connect remote LANs across distances and at speeds previously unheard of. An auto-rate feature ensures that you achieve the highest possible speed on each connection.

It's easy to use, too. Plug-and-play means that you'll be up and running in seconds, and the built-in MDI-X works with either straight-through or crossover cables.

The pair autosenses the data rate up to 22.8 Mbps at a distance of 4750 feet (1450 m) to provide reliable broadband connectivity with full-duplex symmetric rates, with lower speeds at longer distances of up to about 5.2 miles (8.3 km).

Ethernet Extender Kit 4 Port 4 Wire Managed. Extends 4 ports 10/100Mbps Ethernet RJ45 over copper or CATx line interface, RJ45. The kit includes 2 extenders for near-end (local) far-end (remote) deployment. Typical applications include Enterprise LAN extension, campus LAN expansion. This kit includes a pair of auto-rate Ethernet extenders, using a standard 4-wire connection, which simplifies your life and provides cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure. These 4 port 10BASE-T/100BASE-TX Ethernet Extenders use G-SHDSL technology to provide an easy, inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Devices include external 90-240VAC power supplies. Management interfaces include a web based GUI, SNMP, and a console port.

4-Wire Standard
The distance on 24 AWG (0.5 mm):
