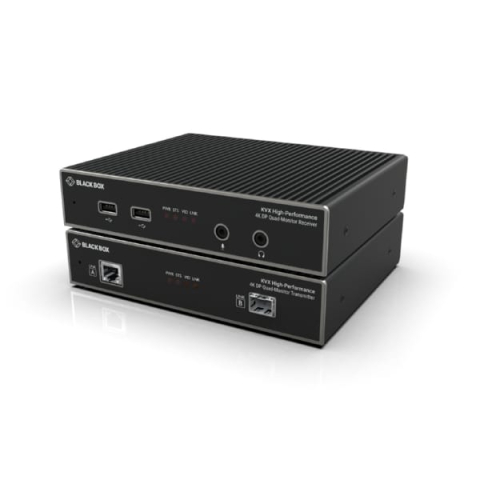

Black Box KVXHP-400 KVXHP Series MST KVM Extender over CATx/Fiber - Quad-Monitor, 4K DisplayPort, USB HID, Serial, Audio, Local Video

Quad-Head HD KVM extender with DisplayPort 1.2 MST technology over copper or fiber

True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 (Multi-Stream Transport) Technology, KVXHP supports up to four external displays transmitted over a single cable. HD video, USB HID, and audio are all transmitted over a single CATx or Fiber cable. Whether your requirements are CATx or fiber, KVXHP is equipped to handle both interfaces providing a single solution for all use cases.

KVXHP supports four external MST enabled DisplayPort monitors with resolutions up to 1920x1200 at 60Hz using 8 bits per color and 4:4:4 chroma sampling, provides high-quality audio, EDID management, and Emulated USB HID.

Features:

• Quad-Head video at HD60 via DisplayPort 1.2 MST (Multi-Stream Technology)
• Point to point extension up to 328 ft (100m) over CATx or 2.5 miles (4km) over fiber cable
• CATx or Fiber flexibility
• True USB emulation supports the most advanced keyboards and mice
• Intelligent EDID management reduces monitor compatibility issues
• Digital / Analog audio
• 4 x Tri-color connection status LEDs
• Single or Dual-Head models also available

Product Includes:

• (1) Transmitter
• (1) Receiver
• (2) 12V, 1.5A Power Supply
• (1) DisplayPort Cables M/M, 1.8m (6 ft.)
• (1) USB Type A to B Cables, M/M, 1.8m (6 ft.)
• (1) 3.5mm Audio Cable, MM, 3m (10 ft.)
• Power Cord(s)

This product works with:

• 12VDC/5VDC Power Converter Cable/Central Power Hub, 6-ft. (1.8-m)
• 10G SFP - 10-Gbps Singlemode Fiber, 1310nm, 10km, LC
• MST Hub - DisplayPort 1.2, 4K, 4-Port
• Extender Rackmount Tray

NOTE: For Fiber connectivity, please order the SFPs separately. The usage of other SFPs is not recommended.

NOTE: MST-enabled monitors or MST hub required.

NOTE: If the application requires 2 or more monitors in MST mode (including using an MST hub), the monitors must be HD and not 4K or the application will not function properly.
