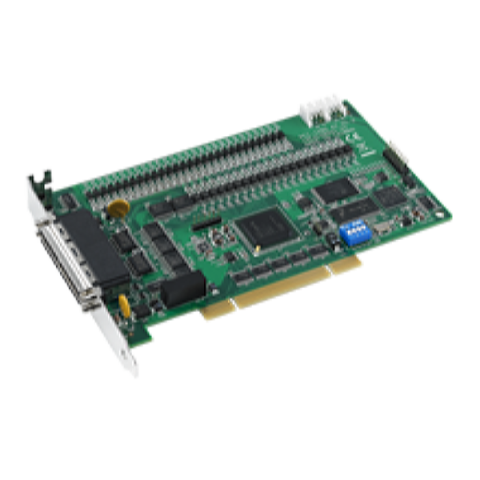

B+B SmartWorx PCI-1285-AE Full DSP-based 8-Axis Motion Control Universal PCI Card

Features:

• Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
• Pulse output up to 5 Mpps
• Memory buffer (10K points) for trajectory planning which is designed in DSP
• Supports E-Gear, and helical interpolation
• Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
• Hardware emergency input
• Watchdog timer
• Position latch
• Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
• Programmable interrupt
• Supports gantry mode by semi-closed loop pulse train control
• RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes
