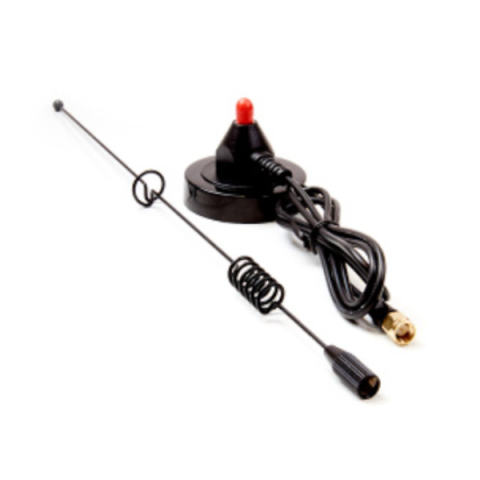

B+B SmartWorx BB-GA.110.101111 4G/3G/2G High Gain Magnetic Mount Ultra-Wideband Antenna, SMA-M

The BB-GA.110.101111 magnetic ultra-wideband cellular antenna delivers stable high omni-directional gain and efficiencies across all common 4G, 3G and 2G global cellular bands from 700 MHz to 3.5 GHz. This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like CDMA to GSM or 4G to 3G. Being magnetic mount it is designed to be mounted on a ground plane for optimal performance. A reliable return loss of <10dB when mounted on a metal plate ensures it complies with the industry standards set by module makers and networks worldwide. Advantech recommends using the antenna with 1m cable length. The strong magnet base is extremely stable and robust, using only high quality neodymium magnets for a secure magnetic mount to ensure a high pull force to disengage.

Features

• LTE/GSM/CDMA/DCS/PCS/WCDMA/UMTS/GPRS/EDGE/GPS/Wi-Fi antenna
• 698MHz to 960MHz, 1575MHz, 1710MHz to 2700MHz, 3500MHz
• Thin bendy cable, RG174/U, length 1 m
• Gain 3dBi
• Robust High Strength Super Magnet Mount
• RoHS Compliant
• Connector - 1x SMA-Male
