Azzota Peri-P1-MC-4 PeriScientific Multi-Channel Smart Pump Systems 0.005-46 mL/min Masterflex HV-77919-25 - Max 4

PeriScientific® Multi-channel Smart Pump Systems, 0.005-46 mL/min, like Masterflex HV-77919-25 - Max 4

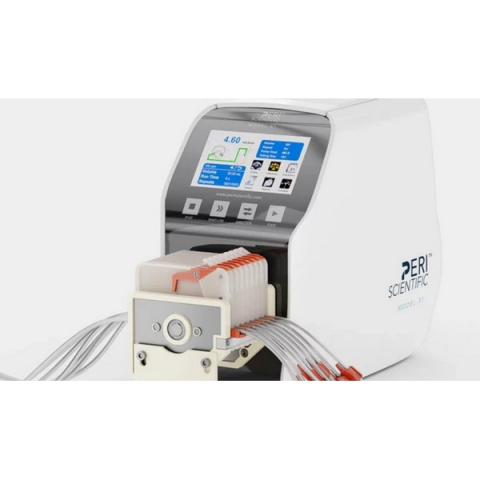

The MC- PeriScientific multi-channel smart peristaltic pump is designed to meet your fluid transfer and dispensing needs with superior precision and accuracy, easy operation and minimum maintenance. The ultra-bright 4.3-inch LCD touch screen control panel interactively guides you at each step of the operation to set up sophisticated dispensing procedures in just seconds. In 4 different operation modes: Continuous Dispense Mode, Volume Dispense Mode, Repeat Dispense Mode, and Schedule Dispense Mode, the human-machine interface (HMI) accepts direct process parameter input and displays readout of rotor speed, flow rate, dispensed volume, remaining time or elapsed time data all on one screen.

Equipped with easy load pump head MC-4 (max 4 channels), 3 tubing size selections: #1X1, #2X1, #3X1, this complete pump system provides a broad range of flow rates (0.005-46 mL/min) along with transfer and dispense capabilities compatible with the most complex fluid properties. It is the one-stop choice for laboratory and industrial fluid transfer and dispense applications.

Features

• Ultra-bright 4.3-inch LCD color touch screen control panel
• Real-time display of critical process parameters including: rotor speed, flow rate, flow direction, dispensed volume, remaining time or elapsed time all on one screen
• Intelligent calibration functions to ensure each individual fluid is transferred with the best accuracy
• Digital rotor angle control technology enables accurate and consistent volume and flow rate dispense and measurement
• Built-in hard keys are ideal for instantaneous control, response, and interruption of the dispense process
• Volume Dispense Mode: suitable for accurate liquid dosing, raw materials addition, and chemical or biological reaction process controls
• Repeat Dispense Mode: suitable for repeated liquid dispensing and industrial production processes
• High torque and low power loss rotor designed for multi-channel pump head with maximum dispensing capacities by a single drive
• External communication capabilities: connections with remote control devices for system integration and automation
• High performance engineered composite materials built for the best durability and corrosion resistance
• 4-Channel Similar to Masterflex - Item # HV-77919-35  Masterflex L/S® Digital Drive with Multichannel Cartridge Pump Head for L/S Precision Tubing, 4-Channel

Specifications

• Motor Speed, rpm: 0.1-150
• Flow Rate (MC-4), mL/min: 0.005-46
• Motor Speed Resolution, rpm: 0.1
• Flow Rate Resolution, mL/min: 0.01
• Maximum Outlet Pressure, psi/bar: 14.5/1.0
• Number of Rollers: 10
• Materials of Construction: Roller: Stainless Steel
• Materials of Construction: Housing: ABS engineering plastics
• Materials of Construction: Channel Cartridge: POM/PVDF (Polyoxymethylene/polyvinylidene difluoride)
• Human-Machine Interface: 4.3" LCD color touch screen
• Power, W: <50
• Voltage, VAC: 110
• Frequency, Hz: 50/60
• Height, inch/mm: 9.3/237
• Width, inch/mm: 6.2/157
• Length, inch/mm: 12.4/315
• Drive Weight, Lbs/kg: 11.0/5.0
• Enclosure Protection Rating: IP31
• Relative Humidity of Operation: <80%
• Temperature of Operation, F/C: 32-104/0-40
• Compliance: CE, RoHS
• Communication Protocol: MODBUS RS232/RS485
• External Control Signal Inputs: 0-5V, 0-10V, 4-20mA
