Azzota MBM-VP-01 Vacuum Filtration Manifold System Single Branch

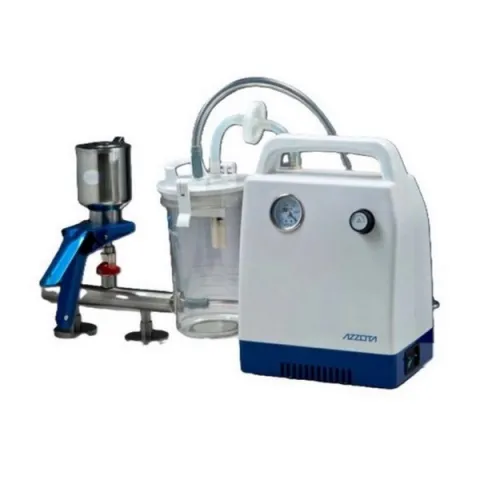

Azzota® Vacuum Filtration Manifold System, Single Branch

Features

• Stainless steel manifold for one filtration unit is fitted with SUS316 stainless steel units
• The apparatus can be autoclaved and sterilized by dry heat at up to 180°C
• Tubing nozzle 3/8" (8-9 mm) ID vacuum tubing (inside diameter), one way Valve
• Total Length 12 inch (300mm), Distance between stations is 4 inch (105mm), stations height 10.6 inch (270mm)
• Uses Microporous Filter Size 50mm to 47mm (Sold Separately)
• The top flask Diameter 65mm, Height 105mm, Volume 300ml
• The funnel volume: 300 ml
• The collection bottle volume: 1000ml

Complete System for Filtration includes:

• Filtration system with one manifold
• Oil free vacuum pump. 25L/Min
• Collection bottle and tubes
