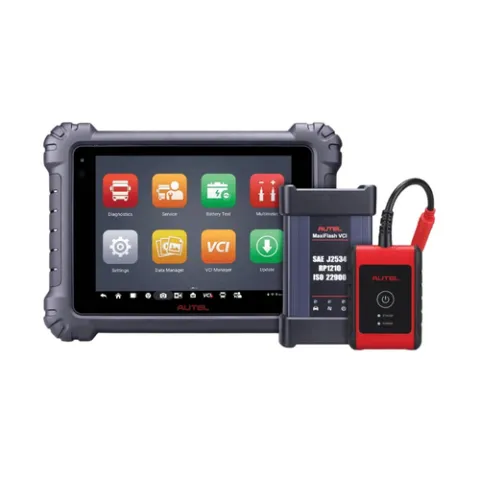

Autel MS909CV MaxiSYS Commercial Vehicle Diagnostic Tablet 9.7" Wireless Android 128 GB Memory 12V/1.3A

The Autel MaxiSYS MS909CV is a 9.7-inch wireless Android diagnostic tablet for light, medium, and heavy-duty vehicles, including off-road construction vehicles. The MS909CV offers Autel's most comprehensive commercial vehicle diagnostic tablet and service capabilities with all-systems auto scan, network topology, viewing and graphing live data, performing bi-directional controls and tests for Class 1-Class 9 heavy-duty vehicles and off-road construction equipment.

The unit also features Expert Mode for direct access to OE-specific systems, including engine, transmission, and braking systems. The MS909CV can perform dynamic and static ADAS calibrations (static calibrations require the purchase of an Autel Commercial Vehicle ADAS calibration package). The tablet ships with the MaxiBAS B200 battery/starting/charging system test device, Deutsch 6 Pin & 9 Pin and Full Probe set, and the MaxiFlash VCI/J2534 pass-thru programmer.

Features:

• MaxiSYS MS909CV performs enhanced system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles
• 9.7-inch Wireless Android-Based Touchscreen Diagnostics Tablet
• Octa-core Processor / 128 GB Storage Memory
• Engine diagnostic coverage for construction & agricultural machinery
• Wireless Vehicle Communication Interface (VCI)/J2534 pasthru programming device
• Topology Module Mapping
• Performs Starting and Charging Systems Analysis with included MaxiBAS B200 tester with alligator clamps
• Includes Multimeter & Amp Clamp
• ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems
• Rapid Vehicle Identification via VINscan and AutoVin
• Includes Free Software Updates

The MS909CV is equipped to handle numerous HD protocols, including:

• SAE J1939: Commonly used in heavy-duty vehicles for CAN communication
• SAE J1708: A legacy protocol for older heavy-duty applications
• ISO 15765: CAN protocol for OBD-II diagnostics
• ISO 14229 (UDS): Unified Diagnostic Services for advanced vehicle diagnostics
• PLC J2497: Power Line Carrier communication for trailer ABS systems
• ISO 11898-2/3: High-speed and low-speed CAN protocols
• SAE J1850 PWM/VPW: Used in Ford SCP and GM Class 2 systems
• DoIP (ISO 13400): Diagnostics over IP for modern vehicles
• CAN FD: Enhanced CAN protocol for faster data transmission

Additionally, the MS909CV supports Caterpillar's proprietary CDL protocol, enabling diagnostics on Caterpillar equipment, such as wheel loaders and excavators. This includes bi-directional controls and active tests for hydraulic systems.

Package includes:

• Main Unit
• MaxFlash VCI
• AC/DC Power Adapter (12V)
• Main Cable V2.0
• USB 2.0 Cable V2
• Type C USB Cable
• Clipper Cable
• Cigarette Lighter
• 2 x Light Fuse (6 x 30 mm)
• Deutsch-6
• Deutsch-9
• 2 x JW1
• 2 x JW2
• 2 x JW3
• 2 x JW4
• 2 x JW5
• 2 x JW6
• 2 x JW7
• 2 x JW8
• 2 x JW9
• 2 x JW10
• UNI-4
• MaxiBAS B200
• 400A Current Clamp
• 2 x Multimeter Test Lead
• 2 x Alligator Clip
• 2 x Multimeter Probe
• DM100 Digital Multimeter
• Quick Reference Guide
• Packaging List
• Soft Cloth
• Case
• Carrying Case
