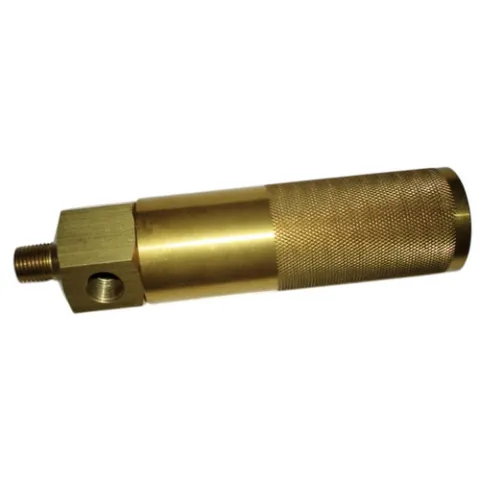

Aqua Environment 1397 1397 Series Tee Filter 1/4" NPT 6000 PSI Bubble Tight

The model 1397 Tee filter provides a large area filter that can be easily removed for cleaning or changing without disconnecting pressure piping. Used upstream of other components such as regulators or valves it protects seats and small internal filters from particulates, rust particles, etc.

Installation

Use a suitable pipe thread sealant such as Teflon tape on the inlet and outlet ports. The filter is NOT shipped oxygen clean and should NOT be used for oxygen service as provided. The inlet is the side female port. The outlet is the male thread at the end. Do not reverse flow. Reverse flow will cause filter element to dislodge and loss of filtering action. If possible install the filter so the cap and element are easily accessible. On many components such as the Aqua Environment regulators 415 or 873 series the filter can be screwed directly into the regulator inlet eliminating the need for extra piping.

Operation

In operation flow enters the side inlet and flows radially through the filter element item 4 to the outlet.

For more information, please see Data Sheet
