AmScope VB-B110C-SLVR Binocular Compound Microscope Bundles 40X-1000X dual LED, Ergonomic, 25-Piece Slides Set and Tweezers Plus BONUS Handheld Multi-USB Digital Microscope for PC and Android
Click to zoom
  • Brand:AmScope
  • Part #:VB-B110C-SLVR
  • Model #:B110 Series
Factory Warranty
Warranty
Condition
Condition: new
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

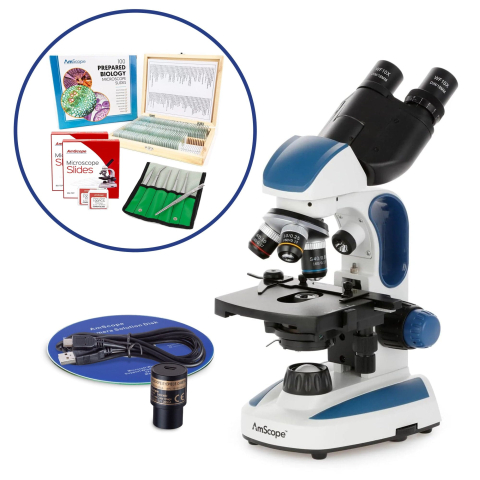

AmScope B110 Series Premium Student Lab Binocular Compound Microscope Bundles: 40X-1000X dual LED, Ergonomic, 25-Piece Prepared Slides Set and Tweezers Plus BONUS Handheld Multi-USB Digital Microscope for PC and Android

  • 40X to 1000X expanded magnification range using high-quality, color-coded objective lenses, and 10X and 25X eyepieces for six unique settings ideal for viewing cellular structures and microorganisms.
  • An economical microscope for students and professionals, the B110 packs high-quality optics and refined mechanics into a compact form.
  • The Siedentopf binocular head has a comfortable 38° incline, can be rotated 360°, and provides interpupillary and dioptric adjustments to suit any user.
  • Students and professionals alike will appreciate the 3-axis mechanical stage with low-position controls, and the coaxial coarse and fine focus for their ergonomics and efficiency.
  • The bright, daylight-balanced LED illumination uses our specialized fly-eye lens for improved uniformity and contrast from both the bottom, for prepared slides, and top for macro subjects such as fossils, rocks, and gemstones.
  • Bundle Includes: dual LED, Ergonomic, Lab Binocular Student Microscope with 25-Piece Prepared Slides Set and Tweezers Plus BONUS Handheld Multi-USB Digital Microscope for PC and Android

The B110 binocular compound microscope is designed for teaching demonstrations, clinical examinations, and laboratory applications. It is an ideal beginner microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class, such as enhanced LED lighting from both top and bottom angles, Abbe condenser with iris diaphragm, and Siedentopf head adjustments. Use the microscope for studying fixed or live cells, bacteria, plants, and soil, or water samples.

Viewing Head

To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 38° to comfortably accommodate a seated position without neck strain. Various eyepieces can be used to increase the overall optical magnification.

Optics

The objective turret provides instant access to 3 magnification levels to focus on minute details from 40X to 1000X easily. Additional 25X eyepieces expand the maximum magnification to 1000X with 6 unique levels. This covers the magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

The Stage

The 2-layer mechanical stage provides smooth and precise movement for the examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

Transmitted Illumination

The LED sub-stage lighting provides cool, energy-efficient illumination. The bottom light source is daylight balanced to produce natural colors for imaging. With our specially developed fly-eye lens, the light is evenly distributed at maximum brightness to improve contrast and resolution. There is also an overhead light that can be switched on by flipping the power switch which allows you to illuminate larger subjects that cannot receive light from below such as fossils, rocks, and gemstones. Illumination is further enhanced by an Abbe condenser with an iris diaphragm, which can be dilated to limit the amount of light your subject receives.

Specifications

Optical SystemFinite-conjugate
Mechanical Tube Length160mm
HeadBinocular, 38° incline, 360° rotatable
Interpupillary AdjustmentSiedentopf, 53-77mm
Ocular Diameter23mm
Eyepieces10X, 25X
Objective LensesDIN standard
Objective Parfocal Distance45mm
Objective Mounting ThreadRMS 20.32mm
Objective TurretTriple
Focusing SystemCoaxial coarse and fine focus
Focus Range30mm
Division of Fine Focus0.002mm
Stage DesignDouble-layer with caliper
Stage Dimensions115mm x 110mm
X-Y Translation Range50mm x 25mm
Transmitted Illumination

Variable-intensity 1W LED under and overhead.
Switch modes by flipping the power switch.

CondenserNA0.65 Abbe condenser with iris diaphragm
Power100-240VAC 50/60Hz wide-band
Dimensions11" x 7" x 13-3/4" (28cm x 17.8cm x 35cm)

Objective Lenses

MagnificationCorrectionsNAImmersion MediumCover-glass Thickness
4Xachromatic0.10-0.17mm
10Xachromatic0.25-0.17mm
40Xachromatic0.65-0.17mm

Packing List:

  • One binocular microscope head
  • One microscope body
  • Three objective lenses: 4X, 10X, and 40X
  • One pair of 10X eyepieces
  • One pair of 25X eyepieces
  • One blue color filter
  • One dust cover
  • One power supply
  • 50 Pre-Cleaned Blank Microscope Slides and100 22x22mm Square Cover Glass
  • 5 Pack Plastic Disposable Tweezers
  • AmScope PS25W 25 Glass Prepared Microscope Slides with Wooden Box
  • 50X-500X 0.3MP Handheld Multi-USB Digital Microscope with LED Illumination for PC and Android
    • ⚠️ Attention CA Residents: Prop 65 Warning
