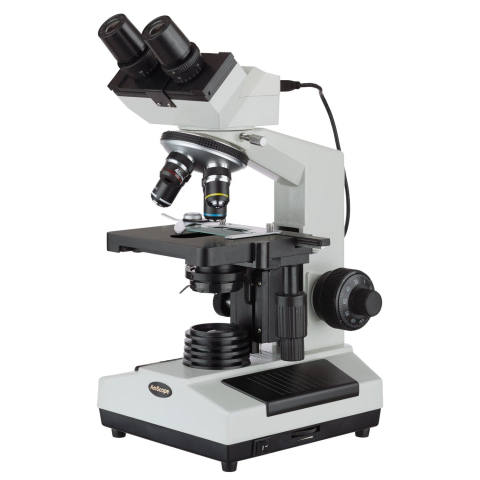

AmScope U230B U230 Series Digital Binocular Compound Microscope 40x-2000x Magnification with Built-in 3MP USB Camera

U230 Series Digital Binocular Compound Microscope 40x-2000x Magnification with Built-in 3MP USB Camera

Key Features:

• 40x-2000x professional sliding head binocular microscope
• Widefield optics offers eight magnification settings
• Abbe condenser with iris diaphragm filters
• Metal framework with coaxial coarse & fine focus
• 20W powerful halogen illumination
• Dual side focusing controls
• Adjustable Diopter on Ocular
• Compatible with Windows 2000/XP/Vista/7

This is a professional compound microscope with 3.0M pixel built-in USB camera. It is compatible with Windows 2000/XP/Vista/7. It comes with an advanced application. It is perfect for scientific research, clinic and education use.

Features :

• Fully Coated Optical System with High Resolution Showing Sharp Image
• 45-degree Inclined 360-degree Swiveling Sliding Binocular Head
• Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
• Low Position Coaxial Stage Movement Control
• Coaxial Coarse Fine Focusing with CA Knob Tension Control
• Fully Coated Optical System with High Resolution
• High Quality Professional Grade Microscope with Crystal Clear Sharp Images
• Perfect for Clinics, Vets, Doctors and Medical School Students
• Eight Magnification Settings: 40X-80X-100X-200X-400X-800X-1000X-2000X
• Upward Stage Stopper to Protect Slides and Objectives
• Abbe Condenser with Iris Diaphragm Filters
• Rack and Pinion Control for Condenser
• Built-in Halogen Illumination System with Variable Intensity
• Dual Side Focusing Controls
• Four DIN Achromatic Objectives
• Two Sets of Eyepieces
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• All Metal Mechanical Components
• Adjustable Interpupillary Distance
• Adjustable Diopter on Ocular
• Rugged Metal Frame and Stand with Stain Resistant Enamel Finish
• Spare Bulb, Fuse and Immersion Oil Included
• Manufactured under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications :

• Nosepiece: quadruple
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: binocular sliding head inclined at 45-degree
• Wide-Field Eyepieces: WF10X and WF20X
• Interpupillary Distance: 2-3/16" - 3-0" (55 - 75mm)
• Achromatic Objectives: 4X, 10X, 40X (spring) and 100X (spring, oil)
• Stage Dimensions: 5-1/2"x 5-1/2" (140x140mm)
• Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)
• Focusing Range: 1-3/16" (30mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Abbe Condenser: NA=1.25 with rack and pinion focusing control
• Illumination: 6V/20W halogen bulb, CE certified
• Power Supply: 100-240VAC 50/60Hz, CE certified
• Accessories: 6V/20W halogen spare bulb, bottle of objective oil, and color filters
• Microscope Dimensions: 12" x 9" x 16"

Specifications for Software:

• Main Function: Live previewing, image capturing, video recording, processing and measuring
• Processing: Crop, cut, copy, paste, flip, rotate, zoom, free transform, net warp. Brightness/contrast, color balance, hue/saturation, invert, grayscale, shade correction, smooth, edge detection. Arithmetic (OVERLAY between two images or one to itself): Add, minus, multiply, divide, And, Or, Not, XOr, And Not, Or And, Max, Min, Sub, Feature And, Mask And.
• Measurement: Point position, linear length, circular area and radius, rectangular area, angle degree.
• Sign marking tools: Adding text, arrow, scale ruler. The color and the size of the signs are adjustable
• Region of interest: Rectangle, ellipse and polygon region.
• Calibration tool: Calibrates the system unit to get the actual read of the measurement.
• Measurement Data: Save the measurement data into a file. Merge and save, Print out.

Packing List:

• One Sliding Binocular Microscope Head
• One Microscope Body with Frame, Base and Halogen Illumination System
• Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 20X Eyepieces
• Two Color Filters
• One 6V/15W Spare Halogen Bulb
• Immersion Oil
• User's Manual Download
• Shipping Weight: 20 lbs
