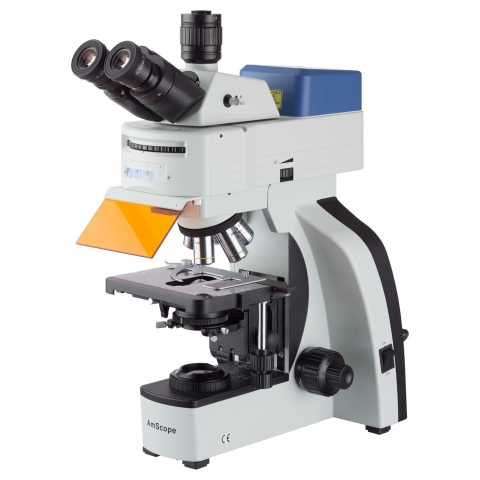

AmScope T800-FLLED T800 High-performance Multi-band LED-Fluorescence Trinocular Compound Microscope

AmScope T800 High-performance Multi-band LED-Fluorescence Trinocular Compound Microscope

• 3-band LED-excited fluorescence with multi-filter turret
• A robust, high-performance microscope with a wide range of contrast-enhancing methods available
• Infinity-corrected, plan, semi-apochromatic optics with edge-to-edge sharpness
• Koehler illumination with multi-NA swing-condenser for high and low magnification

Overview

The T800-FLLED upright fluorescence microscope uses a cutting-edge 3-LED illuminator for variable-band excitation. Oufitted with the widely-used green (G1), blue (B1), and ultraviolet (UV2) excitation-bands, it can be used for a wide variety of common labeling or autofluorescence. Unlike single-LED fluorescence illuminators, the three LEDs are cycled using a multi-filter turret, eliminating the need to exchange light-sources. Each LED provides a precise excitation-source to eliminate non-relevant light, as well as providing maximum intensity at the targeted wavelength. Another major benefit of LED illumination is the elimination of long warm-up times and other care required by fluorescent light-sources such as mercury-vapor.

The infinity-corrected optical system includes plan-fluor objectives, which provide edge-to-edge sharpness with higher resolution, improved color-correction, and improved short and long wavelength transmission. The reversed quintuple-nosepiece is equipped with 4X, 10X, 20X, 40X, and 100X plan semi-apochromatic lenses. The 10X plan, high-eyepoint eyepieces provide a compounded magnification range of 40X to 1000X. The Koehler illumination-system is designed for precision, with a variable-NA swing-condenser allowing the use of high and low magnifications with full, even coverage. The robust frame offers excellent stability and ergonomics, with coaxial coarse and fine focusing, as well as coaxial stage-translation knobs providing fluid control.

Fluorescence

Filters
Filter Set Chart Excitation Fiter Dichromatic Mirror Emission Fiter Common Stains UV2 340-390nm 400nm 420nm Alexa Fluor (350, 405), BFP, DAPI, Dopamine, Hoechst (33258, 33342, 34580) B1 450-490nm 495nm 500-550nm Acridine Orange (DNA/RNA), Alexa Fluor (488, 500, 514, 610, 647), Chlorophyll, Cy2, DiO, GFP, Rhodamine (110, 123) G1 540-580nm 585nm 590-665nm Texas Red®, Texas Red® X, Cy3.5, Mito Tracker® Red
LED Excitation
Band Peak Wavelength UV2 385nm B1 470nm G1 560nm
