Overview

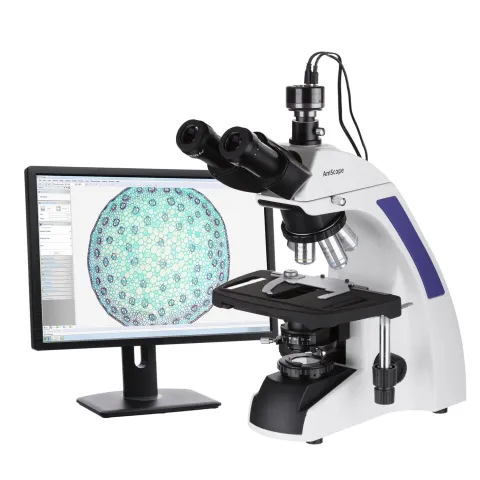

AmScope T720 Series Plan Infinity Kohler Laboratory Trinocular Compound Microscope 40X-2500X Magnification with HD Recording Camera

  • Plan infinity optical system offers crisp clear sharp images
  • 40X-2500X with six extreme widefield magnification settings
  • Backward nosepiece configuration allocates spacious space for comfortable operation and observation
  • Wide band voltage (90-240V) Kohler LED illumination with iris condenser
  • HD recording camera

This brand new professional trinocular compound microscope comes equipped with an infinity Plan optical system and offers advanced features as well as research-grade performance. Its crystal-clear optics and precise mechanical systems promise high-quality performances for advanced applications. The backward nosepiece-design allows spacious room for convenient operation. This microscope has four high-quality Plan Achromatic objectives (4X, 10X, 40X, 100X), a pair of extreme widefield 10X eyepieces, a pair of 25X eyepieces, a Kohler illumination system, a 30-degree incline on the ocular tubes for comfortable viewing, 360-degree swiveling, compensation-free trinocular head, a coaxial coarse & fine focusing system, and a 3D mechanical stage. It provides six levels of magnification: 40X, 100X, 250X, 400X, 1000X, 2500X. It is an ideal instrument for advanced researches.

This package includes a 1080p digital camera with built-in recording, and HDMI output for live-viewing. The camera's compact, all-metal design make it sturdy yet unobtrusive. Video can be viewed live on an HDMI monitor or television at a smooth 60fps, and recorded onto MicroSD (not included) at 30fps.

Features :

  • Infinity Corrected Optical System with High Resolution
  • Fully Coated Optics with Crystal Clear & Sharp Images
  • Precise Mechanical Control System
  • Reversed Nosepiece Design
  • Kohler Illumination System with Field Diaphragm for Lighting Control
  • 30-Degree Inclined, 360-Degree Swiveling, Compensation Free Trinocular Head
  • Six Magnification Levels: 40X, 100X, 250X, 400X, 1000X, 2500X
  • Intensity-Variable Transmitted LED Lighting System
  • Abbe Condenser with Iris Diaphragm and Filter Holder
  • Rack and Pinion Adjustment for Condenser
  • Low Position Coaxial Stage Movement Controlling Knobs
  • Dual Side Coaxial Coarse and Fine Focusing Control
  • Adjustable Interpupillary Distance
  • Adjustable Diopter on Eyepieces
  • Durable Cast Alloy Frame with Stain Resistant Enamel Finish
  • Four Infinity Plan Objectives Included
  • Two Pairs of Extreme Widefield Eyepieces Included (EWF10X & WF25X)
  • Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
  • Large Double Layer Mechanical Stage with Stain Resistant Coating
  • Upward Stage Limit Stop to Protect Objectives and Slides
  • Manufactured under ISO 9001 Quality Control Standards
  • Excellent Five (5) Year Factory Warranty

    • Specifications :

  • Optical System: infinity corrected
  • Nosepiece: reversed, ball bearing quadruple
  • Head: gemel type trinocular head, 30-degree inclined
  • Eyepiece: high eye-point eyepieces, WF10X22mm, WF20X
  • Objectives: infinity plan objective 4X, 10X, 40X (spring), 100X (spring, oil)
  • Focusing: low position coaxial focus system
  • Focusing Range: 1-3/16" (30mm)
  • Interpupillary Adjustment Range: 2-3/16" - 3" (55-75mm)
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Mechanical Stage: 8.5" x 5.9" (216mm x 150mm)
  • Stage Traveling Range: 2.9" x 2" (75x50mm)
  • Focusing Rang: 0.95" (24mm)
  • Division of Fine Focusing: 0.00003935" (0.001mm)
  • Illuminator: Built-in Kohler LED illumination system
  • Condenser: N.A. 1.25 achromatic condenser
  • Illumination: Kohler, LED
  • Power Supply: 90V-240 wide voltage, CE certified
  • Built in measurement capabilities
  • Weight: 28 lbs

    • Camera Specifications:

  • Camera Sensor: Sony IMX291
  • Sensor Type: CMOS
  • Sensor Resolution: 2MP (1920 x 1080)
  • Sensor Size: 1/2.8" class -- 6.06mm(w) x 4.42mm(h), 7.50mm(diag)
  • Pixel Size: 2.9μm
  • Dynamic Range: 128dB
  • Signal Noise Ratio: 30dB
  • Light Spectrum Response: 380nm to 650nm
  • HDMI Output: 1920x1080p60
  • Image Capture: 1920x1080
  • Image Format: JPEG
  • Video Capture: 1920x1080 @ 30fps, 1280x720 @ 60fps
  • Video Format: MOV
  • Storage: MicroSD Card (TF) max 128GB (not included)
  • Power: 5V (micro USB)

    • Packing List :

  • One Trinocular Compensation-Free Head
  • One Microscope Body with Frame, Base, and Kohler Illumination System
  • Four High Quality DIN Plan Achromatic Objectives: 4X, 10X, 40X and 100X
  • One Pair of Widefield Eyepieces: WF10X
  • One Pair of Widefield Eyepieces: WF25X
  • One Dust Cover
  • One HDMI camera
  • One HDMI cable
  • One Power Adapter for Camera
  • One 0.5X C-mount Reduction Lens
  • Immersion Oil
  • User's Manual
