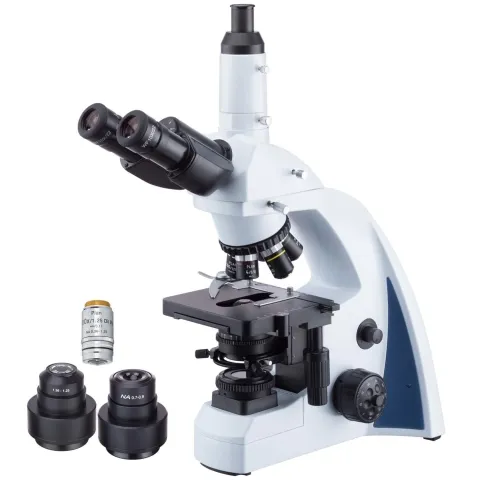

AmScope T670QC-PL-DK2-IRIS-20MBI3 T670 Series Trinocular Compound Microscope 40X-2500X Magnification with 3W Koehler and 20MP Back-Lit USB 3.0 Camera

T670 Series Deluxe Darkfield Infinity-Corrected Trinocular Compound Microscope 40X-2500X Magnification with 3W Koehler Illuminator and 20MP Back-Lit USB 3.0 Camera

Key Features:

40X to 2500X achromatically-corrected magnification for studying a range of specimens including hair follicles, cells, and bacteria. 10X and 25X eyepieces provide 6 unique magnification settings.

A scalable microscope with brightfield darkfield illumination. Additional upgrade options including fluorescence and phase-contrast.

Includes a specialized 100X darkfield objective lens with variable aperture to increase or decrease darkfield contrast

Super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification

The infinity-corrected optical system reduces distortion and improves color accuracy.

The quintuple lens turret is equipped with five plan-achromatic objective lenses producing high-contrast images with edge-to-edge sharpness.

The Koehler illumination system provides centered, evenly-distributed lighting with a field aperture for maximum contrast and definition.

Monitor and capture photos and videos with the included back-illuminated 20MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.

This is an upgraded version of the T670Q-PL, which includes two additional specialized light-condensers for darkfield illumination, and a 100X darkfield objective lens with iris-controlled aperture. This model is designed to be a fully-scalable and economical laboratory microscope with additional upgrade options for phase-contrast and fluorescence. Its infinity-corrected optical system ensures reliable, low-distortion magnification, with plan-achromatic corrections for accurate colors, excellent field flatness and edge-to-edge sharpness. A quintuple lens-turret is used, providing five levels of magnification. The Koehler-design LED illumination system provides bright, evenly-distributed light for maximum contrast and definition.

The microscope's head is designed for precision and comfort. The super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars without readjusting focus. For users with astigmatism or asymmetrical vision, both eyepieces can be independently adjusted to fine-tune focus. The switched trinocular port provides a dedicated mount for a camera to record photos or videos, and is height-adjustable to match focus with the eyepieces. The port uses our 23mm YX-type interchangeable interface which can be replaced with an optional C-mount adapter.

The quintuple objective turret provides instant access to 5 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces expand the maximum magnification to 2500X with 8 unique levels. This covers magnifications needed for studying hair follicles, cells, soil, and bacteria. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The LED light-source ensures cool, energy-efficient illumination with low heat for live specimens. The bright light-source is daylight-balanced to produce natural colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.

Darkfield illumination provides contrast for viewing certain specimens which present little to no detail, such as live blood cells. This microscope includes two specialized condensers and an iris-equipped 100X objective lens which work with oblique lighting to highlight disparate substances. One condenser is for lower magnifications, and require no immersion oil. For applications that frequently use objective magnifications of 40X or less, this is the best option. When higher magnifications are needed, the oil-immersion condenser would be used, supporting lenses from 20X to 100X. The 100X plan-achromatic lens has a built-in iris to adjust its numerical aprture for fine-tuning contrast, guaranteeing the best image quality.

Monitor and capture photos and videos with the included high-resolution 20MP USB3.0 camera. The sensitive back-illuminated sensor is designed for improved low-light imaging, making it suitable for fluorescence and darkfield microscopy. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Packing List:

One trinocular head

One microscope body

Five objective lenses: 4X, 10X, 20X, 40X, 100X

One plan-achromatic 100X darkfield objective lens

One pair 10X eyepieces

One pair 25X eyepieces

One dry darkfield condenser

One oil darkfield condenser

One power cord (US and Canada standard)

One dust cover

One sample immersion oil

One C-mount USB camera

One USB 3.0 Type B to USB 3.0 type A cable

One software CD
