Overview

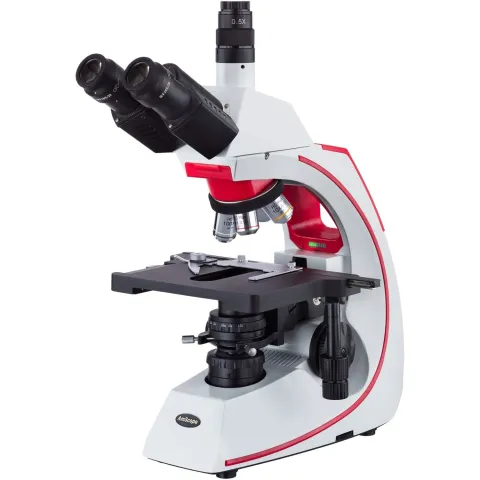

40-1600X Trinocular Infinity-corrected Research Microscope with LED Koehler Illumination

Features:

  • Infinity optical system with Koehler illumination
  • Eight magnification settings from 40X to 1600X
  • Trinocular head for adding C-mount camera
  • Compensation-free Siedentopf head

The T620 is a research-grade biological compound microscope, with a 3-Watt LED Koehler illumination system. The infinity-corrected optical system supports the addition of in-line components, such as episcopic lighting and a polarizing module. Four plan achromatic objective lenses (4X, 10X, 40X, 100X), combined with two sets of wide-field eyepieces (10X, 16X), offer a wide range of magnifications from 40X to 1600X. The wide-field plan optics maximize the focused field-of-view, and correct for common color separation, producing a large, clear viewable area. The bright 3W LED illumination system features a field diaphragm and centerable condenser for optimized lighting, increasing efficiency and clarity.

The head features Siedentopf interpupillary-adjustment, allowing for correction-free customization, and the 10X eyepieces are focusable for correction of ocular disparity. The simulfocal trinocular photo-port has a built-in 0.5X focusable reduction lens, and male C-mount thread for directly mounting compatible C-mount cameras. The simul-focal port does not require any switching, so both eyepieces will remain functional. As well, being focusable, the port can be adjusted to be parfocal.

Features:

  • Infinity-corrected optical system
  • Eight magnification settings: 40X,64X,100X,160X,400X,640X,1000X,1600X
  • Siedentopf-design adjustable interpupillary distance
  • Simulfocal trinocular C-mount photo port with built-in focusable 0.5X reduction lens
  • Super-bright, variable-intensity 3W LED Koehler sub-stage illumination
  • Coaxial coarse and fine focus adjustment
  • LED brightness gague
  • Large 3D stage
  • Excellent Five (5) Year Manufacturer Warranty

    • Specifications:

  • Interpupillary distance: 2-1/4" - 3-1/8" (55mm - 77mm)
  • Eyepieces: wide-field 10X/20mm, 16X/16mm
  • Nosepiece: reversed quadruple
  • Objectives: plan achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Mechanical Stage: 3-D double layer
  • - Size: 7.4" x 5.7" (188mm x 145mm)
  • - Travel Range (X-Y): 3" x 2.1" (76mm x 54mm)
  • Substage Condenser: centerable Abbe 1.25NA with iris
  • Substage Condenser Movement: rack and pinion
  • Field Collector: Koehler (with diaphragm)
  • Power Supply: AC/DC adapter (UL approved)
  • - 100-240VAC 0.8A, 50/60Hz to 6.5VDV 6A

    • Contents:

  • One microscope body
  • One trinocular head
  • One 3D stage
  • One 0.5X photo-port
  • Four objective lenses: 4X, 10X, 40X, 100X
  • Two pairs eyepieces: 10X, 16X
  • Eyepiece screws
  • Three filters: green, yellow, blue
  • One sample immersion oil
  • One sample prepared slide
  • One dust cover
  • One power adapter
  • Three hex wrenches
  • One screwdriver
