AmScope T570D T570 Series Plan Kohler Laboratory Research Grade Trinocular Compound Microscope 40X-3000X Magnification

AmScope T570 Series Plan Kohler Laboratory Research Grade Trinocular Compound Microscope 40X-3000X Magnification

• Semi-plan optical system offers crisp clear sharp images
• 40X-3000X with eight extreme widefield magnification settings
• Backward nosepiece configuration allocates spacious space for comfortable operation and observation
• High-power Koehler illumination system with wide-band power for international use

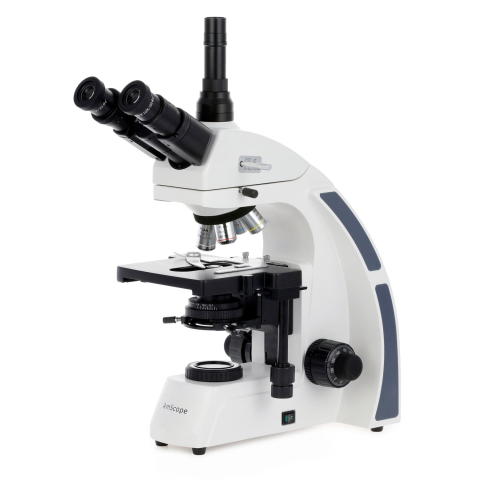

This trinocular biological compound microscope features an infinity-corrected optical system with semi-plan achromatic lenses, and a Koehler illumination system. This instrument is ideal for clinics and labs, and higher education.

The extreme wide-field, infinity-corrected optical system improves accuracy and resolution, and increases the viewable field. The 30° inclined oculars with Siedentopf adjustment offer flexibility and comfort. The trinocular format provides a dedicated photo port for mounting a camera for capturing photos or videos.

The reversed-orientation objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 30X eyepieces extend the maximum magnification to 3000X with 8 distinct levels of magnification to cover a wide range of specimens. The semi-plan achromatic lenses are corrected to improve resolution and color accuracy as well as sharpness across the field of view.

The high-power illumination system conforms to Koehler principles, with field and aperture diaphragms, and a centerable condenser. This provides even lighting for brightfield observation and contrast-enhancing techniques.

Specifications

Objective Lenses

Magnification Chart

Packing List :
