AmScope T490B-MT T490 Series Biological Trinocular Compound Microscope 40X-2000X Magnification with 1.3MP USB Digital Camera

AmScope T490 Series Biological Trinocular Compound Microscope 40X-2000X Magnification with 1.3MP USB Digital Camera

• 40X-2000X Simul-focal trinocular microscope offers eight widefield magnification settings
• Unique features: simul-focal, adjustable photo port, and detachable C-mount adapter
• 3D two-layer mechanical stage with coarse and fine focusing and iris Abbe condenser
• Sturdy metal framework with halogen illumination
• 1.3MP USB 2.0 still/video camera with advanced editing & measuring software for Windows XP/Vista/7/8/10
• This instrument operates on 110V. For 220V version, see T490B-220V.

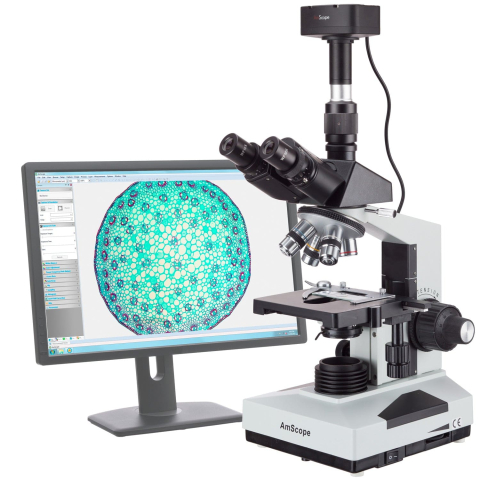

This digital microscopy system includes a T490B trinocular microscope and a 1.3MP USB2.0 color digital camera. It is an ideal laboratory instrument for clinics, Vets, Doctors, and professional students. The T490B features a unique "simul-focal" optical system with an adjustable trinocular port to enable well-focused clear images on your computer or video screen while simultaneously obtaining sharp, focused images through the eyepieces. Most trinocular microscopes allow you to view either through the trinocular port or the eyepieces only, forcing you to switch between the two. Since these trinocular ports are not "simul-focal" with the rest of the microscope optical system, you have to re-focus the microscope after each switch. The T490B, however, erases this step by providing simul-focal viewing. Especially handy for teaching demonstrations, clinical examinations and laboratory applications, the "simul-focal" feature allows your students, patients or colleagues to view clear images simultaneously while you work through the eyepieces. In addition, the T490B's industry standard 23mm photo port and C-Mount adapter allow you to attach most microscope digital cameras and video systems on the market. The T490B includes a 30-degree inclined 360-degree swiveling, compensation-free trinocular head, a 3D mechanical stage, and an intensity-variable halogen illumination system.

The 1.3MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac, there is a lite version with limited processing features.

This microscopy system is perfect for teaching demonstrations, clinical examinations and laboratory applications.

Features:

• Simul-focal Optical System Allows Simultaneous Viewing Through the Photo Port and Eyepieces
• Adjustable Parfocal Trinocular Port
• Industry Standard 23mm Photo Port and C-mount Port
• High Quality 1.3MP USB2.0 Color Digital Camera
• Both Captures Microscope Images and Streams Live Video on Your Computer Screen
• Streams 1.3MP Live Videos
• Saves still images in BMP, TIFF, JPG, PICT, PTL and other formats
• Measures lengths, angles, areas and etc. across images
• Life-time free software upgrading
• Quick and easy USB2.0 connection
• 30-Degree Inclined, 360-Degree Swiveling Compensation Free Trinocular Head
• Photo/Video Capability with Adjustable 23mm Photo Mount for "Simul-Focal" Image System
• Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
• Low-Position Coaxial Stage Movement Control Knobs
• Coaxial Coarse Fine Focusing with CA Knob Tension Control
• Fully Coated Optical System with High Resolution
• Eight Magnification Settings: 40X-80X-100X-800X-400X-800X-1000X-2000X
• Upward Stage Stopper to Protect Slides and Objectives
• Abbe Condenser with Iris Diaphragm Filters
• Rack and Pinion Adjustment for Condenser
• Built-in Halogen Illumination System with Variable Intensity
• Dual Focusing Control Knobs
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• All Metal Mechanical Components.
• Adjustable Interpupillary Distance
• Adjustable Diopter on Ocular
• Solid Metal Frame Construction with Stain Resistant Enamel Finish
• CE and GS Approvals
• Excellent Five (5) Year Factory Warranty

Specifications:

• Nosepiece: quadruple
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: 360-degree swiveling compensation free trinocular head inclined at 30-degree
• Eyepieces: WF10X and WF20X
• Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
• Stage Dimensions: 5-1/2"x 5-1/2" (140x140mm)
• Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)
• Focusing Range: 1-3/16" (30mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Abbe Condenser: NA=1.25 with rack and pinion focusing control
• Illumination: 6V/20W halogen bulb
• Power Supply: 110V
• Accessories: 6V/20W spare halogen bulb, bottle of immersion oil, blue, green yellow filters
• Microscope Dimensions: 12" x 9" x 16"
• Weight: 20 lbs

Contents:

• One Trinocular Compensation-Free Head with 23mm Adjustable Photo Port and C-Mount Adapter
• One Microscope Body with Frame, Base and Halogen Illumination System
• Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
• Two Pairs of Widefield Eyepieces, WF10X and WF20X
• Three Color Filters
• One Dust Cover
• One Power Cord
• One 6V/20W Spare Halogen Bulb
• One Spare Fuse
• Immersion Oil
• User's Manual Download
• One 1.3MP USB2.0 Microscope Digital Camera
• Three Mounting Adapters
• One USB Cable
• One CD with Driver, Software and User's Instructions
