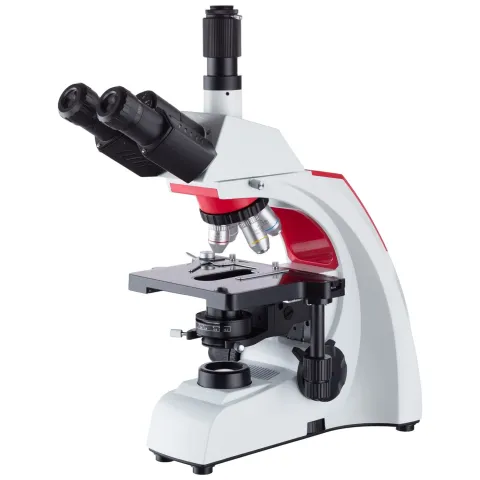

AmScope T430C T430 Series Student and Professional Biological Trinocular Compound Microscope 40X-2500X Magnification with port for Digital Cameras

T430 Series Student and Professional Biological Trinocular Compound Microscope 40X-2500X Magnification with port for Digital Cameras

Key Features:

40X to 2500X magnification range using high-quality achromatic objective lenses and focusable 10X-25X eyepieces.

A top choice for veterinarians, clinics, and classrooms, this microscope provides high quality optics and precision mechanics.

Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.

LED lighting reduces eye-strain for prolonged use.

The trinocular photo port allows you to easily mount a camera.

This is a trinocular compound microscope designed for biological applications. Ideally suited for classrooms, clinics, and entry-level research, the microscope features high-grade achromatic optics, including 4 objective lenses (4X, 10X, 40X, 100X) and 2 pairs of eyepieces (10X, 25X). The expansive 40X to 2500X magnification range covers the largest array of biological subjects.

The Siedentopf head provides compensation-free interpupillary adjustment, and a diopter allows for the correction of ocular disparity. The trinocular photo-port is designed for both 23mm ocular or reduction lenses, and direct C-mount coupling. The port is height-adjustable to aid in parfocal adjustments.

Features:

30-degree inclined, 360-degree swiveling Siedentopf trinocular head

High quality precise optical glass elements

Six magnification settings: 40X,100X,250X,400X,1000X,2500X

Adjustable interpupillary distance

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Centerable NA 1.25 Abbe condenser with iris diaphragm

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty



Specifications:

Eyepieces: widefield, 10X/FN18mm and 25X/FN9mm

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30-degree inclined 360-degree swiveling Siedentopf trinocular

Interpupillary distance: 2-1/4"" - 3-1/8"" (55mm - 77mm)

Adjustable left ocular diopter

Nosepiece: reversed quadruple

Mechanical Stage: 3-D double layer

- Size: 120mm x 115mm

- Travel Range (X-Y): 50mm x 35mm

Condenser: Centerable NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, adjustable intensity

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: AC/DC adapter (UL approved) Included

- 100-240VAC, 50/60Hz to 5VDV 2A



Packing List:

One Siedentopf trinocular microscope head

One microscope body frame with double layer mechanical stage and LED illumination

Four DIN standard achromatic objectives, 4X, 10X, 40X and 100X

Two 10X eyepieces

Two 25X eyepieces

One dust cover

One sample immersion oil

Three glass filters: frosted, yellow, blue

One tension-adjustment wrench

One power adapter
