Overview

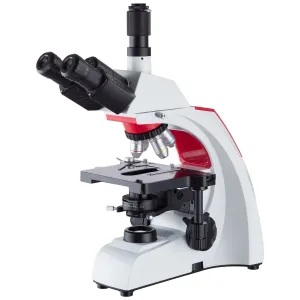

AmScope T430 Series Student and Professional Biological Trinocular Compound Microscope 40X-1000X Magnification with port for Digital Cameras

  • 40X to 1000X magnification range using high-quality achromatic objective lenses.
  • A top choice for veterinarians, clinics, and classrooms, this microscope provides high quality optics and precision mechanics.
  • Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.
  • LED lighting reduces eye-strain for prolonged use.
  • The trinocular photo port allows you to easily mount a camera.

This is a trinocular compound microscope designed for biological applications. Ideally suited for classrooms, clinics, and entry-level research, the microscope features high-grade achromatic optics, including 4 objective lenses (4X, 10X, 40X, 100X) and a pair of eyepieces (10X). The expansive 40X to 1000X magnification covers a good range of biological subjects.

The Siedentopf head provides compensation-free interpupillary adjustment, and a diopter allows for the correction of ocular disparity. The trinocular photo-port is designed for both 23mm ocular or reduction lenses, and direct C-mount coupling. The port is height-adjustable to aid in parfocal adjustments.

Features:

  • 30-degree inclined, 360-degree swiveling Siedentopf trinocular head
  • High quality precise optical glass elements
  • Four magnification settings: 40X,100X,400X,1000X,
  • Adjustable interpupillary distance
  • Variable intensity illumination
  • Coaxial coarse and fine focus adjustment
  • Centerable NA 1.25 Abbe condenser with iris diaphragm
  • Manufactured under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Manufacturer Warranty

    •

    Specifications:

  • Eyepieces: widefield, 10X/FN18mm and 15X/FN16mm
  • Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Head: 30-degree inclined 360-degree swiveling Siedentopf trinocular
  • Interpupillary distance: 2-1/4" - 3-1/8" (55mm - 77mm)
  • Adjustable left ocular diopter
  • Nosepiece: reversed quadruple
  • Mechanical Stage: 3-D double layer
  • - Size: 120mm x 115mm
  • - Travel Range (X-Y): 50mm x 35mm
  • Condenser: Centerable NA1.25 Abbe condenser with iris diaphragm
  • Illumination: LED light, transmitted, adjustable intensity
  • Focusing: coaxial coarse & fine knobs on both sides
  • Power Supply: AC/DC adapter (UL approved) Included
  • - 100-240VAC, 50/60Hz to 5VDV 2A

    •

    Packing List:

  • One Siedentopf trinocular microscope head
  • One microscope body frame with double layer mechanical stage and LED illumination
  • Four DIN standard achromatic objectives, 4X, 10X, 40X and 100X
  • Two 10X eyepieces
  • One dust cover
  • One sample immersion oil
  • Three glass filters: frosted, yellow, blue
  • One tension-adjustment wrench
  • One power adapter

    •
