Overview

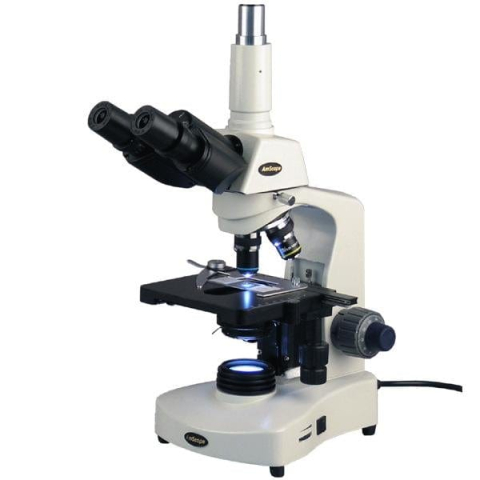

T340 Series Trinocular Compound Microscope 40X-2000X Magnification with 3W LED, 3D Mechanical Stage and 18MP USB 3.0 C-mount Camera

Key Features:

  • 40X to 2000X magnification range using high-quality achromatic objective lenses. 10X and 20X eyepieces provide 8 unique magnification settings.
  • A heavy-duty, ergonomic microscope for students and professionals.
  • Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.
  • Super-bright LED lighting provides cool, daylight-balanced illumination.
  • The trinocular photo port provides a dedicated mount for a camera.
  • Monitor and capture photos and videos with the included 18MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.

    • The T340-LED trinocular compound microscope is designed for educational and professional use. The medium-sized profile offers streamlined ergonomics with plenty of working room. The heavy-duty metal build and enamel coating will last for many years through rigorous use.

    To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. The head can also be rotated 360° to accommodate multiple users. Various eyepieces can be used to increase the overall optical magnification. The trinocular photo-port adds a dedicated mounting tube for cameras. The 23mm tube is height-adjustable to fine-tune the focus to match the eyepieces.

    The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level. An adjustable height limit can be set to prevent damage to the lenses and specimens while focusing.

    The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control.

    This package includes a digital camera with built-in recording and live-viewing. The camera's compact, all-metal design make it sturdy yet unobtrusive.

    Specifications

    Optical System Finite-conjugate
    Tube Length 160mm
    Head Trinocular, 30° incline, 360° rotatable
    Interpupillary Adjustment sliding, 55-75mm
    Ocular Diameter 23mm
    Eyepieces 10X, 20X
    Photo Port 23mm tube
    Objective Lenses DIN standard
    Objective Parfocal Distance 45mm
    Objective Mounting Thread RMS 20.32mm
    Objective Turret Reversed quadruple
    Focusing System Coaxial coarse and fine focus, upper limit-stop, tension-control
    Stage Design Double-layer with caliper
    Stage Dimensions 110mm x 140mm
    X-Y Translation Range 78mm x 40mm
    Transmitted Illumination Variable-intensity LED
    Condenser NA1.25 Abbe condenser with iris diaphragm
    Sub-stage Condenser-holder rack and pinion
    Power 100-240VAC 50/60Hz wide-band

    Objective Lenses

    Magnification Corrections NA Immersion Medium Cover-glass Thickness
    4X achromatic 0.10 — 0.17mm
    10X achromatic 0.25 — 0.17mm
    40X achromatic 0.65 — 0.17mm
    100X achromatic 1.25 oil 0.17mm

    Packing List:

  • One trinocular microscope head
  • One microscope body
  • Four objective lenses: 4X, 10X, 40X and 100X
  • One pair 10X eyepieces
  • One pair 20X eyepieces
  • One dust cover
  • One sample immersion oil
  • Two color filters: blue, green
  • One C-mount camera
  • One mini-USB to USB type-A cable
  • One reduction lens
  • One software mini-CD
