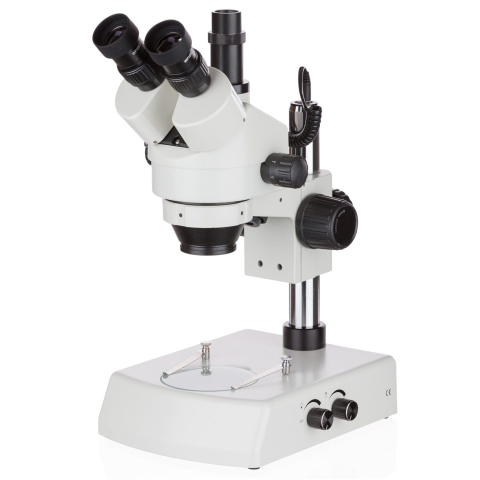

AmScope SM-2T-V331 7X-45X Dual Lit Halogen Trinocular Stereo Zoom Microscope

AmScope Outlet 7X-45X Dual Lit Halogen Trinocular Stereo Zoom Microscope

Features:

• Super widefield optical system offers crisp clear stereo images
• Both top and bottom Halogen illumination systems
• 7X-45X zoom magnification power
• Large working distance; large field of view; sturdy metal tracking stand
• Trinocular port for adding photo or video capability

This top of the line 7X-45X trinocular stereo zoom microscope is equipped with SUPER widefield optics, and a versatile dual halogen illumination system with independent intensity controls! Our lighting system allows you to use both incident illumination, which shines light down onto a 3-dimensional specimen, and reflecting-plate bottom illumination, which shines light up through a transparent sample. Because the top and bottom halogen lights are controlled by separate dimmers, you are able to customize lighting for the optimal level of illumination, whatever the situation.

The optics of this SM series microscope features a large zoom magnification range, which produces sharp, crystal-clear stereo images, while providing a generous working distance. The 360 degree swiveling, trinocular head is attached at a 45 degree angle, which ensures easy and comfortable observation - especially when used in conjunction with the included rubber eyeguards. On the base, the stage plate measures 3-3/4" or 95 mm in diameter.

With its high resolution, good depth, and broad field of view, this microscope can be used for both educational and professional purposes in research labs, hospitals, schools, and veterinary offices.

This microscope provides all the excellent features of a high quality laboratory instrument at an affordable price.

Features:

• Contemporary halogen incident (top) lighting and halogen bottom illumination
• Brightness-adjustable with separate dimmer controls
• 7X-45X large zoom range magnification
• 45 degree inclined 360 degree swiveling trinocular head with SUPER widefield eyepieces
• High-eyepoint design for easy observation including eyeglass wearers
• Industry standard 23mm upright tube for photo or video accessories
• One pair of 30mm SUPER widefield eyepieces
• High resolution with great flatness and contrast
• Sharp stereo erect images over a SUPER widefield of view
• Crystal clear original true color images
• Both ocular-tubes with adjustable diopter
• Metal pillar stand finished with stain resistant enamel
• Accurate alignment ensuring a fatigue-free long time viewing
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Adjustable interpupillary distance
• Rubber eyeguards included
• CE approval electric apparatus
• Manufactured under restrict ISO 9001 quality control system
• Five (5) year manufacturer warranty

Specifications:

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: 30mm super wide field high-eyepoint WF10X/20
• Objective: 0.7X-4.5X
• Zoom Range: 26:1
• Diopter Adjustment: ±5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 100mm
• Field of View: 28.6mm - 4.4mm
• Incident (Top) Illumination: 12V 15W Halogen
• Transmitted (Bottom) Illumination: 12V 15W Halogen
• Accessories: dust cover, eye-guards, black/white reversible plate, frosted glass plate
• Shipping Weight: 25 lbs

Packing List:

• One Trinocular Stereo Zoom Head
• One Pair of Super Widefield High-Eyepoint 10X Eyepieces
• One Halogen Top Light
• One Pillar Base with Halogen Lighting
• One Focusing Rack
• One Pair of Clips (mounted)
• One Pair of Eye-guards
• One Power Cord
• User's Manual Download
