AmScope MU900B 9MP USB 2.0 High-performance Color CMOS C-Mount Microscope Camera with Reduction Lens
Click to zoom
Factory Warranty
Warranty
Condition
Condition: new
Out Of Stock
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

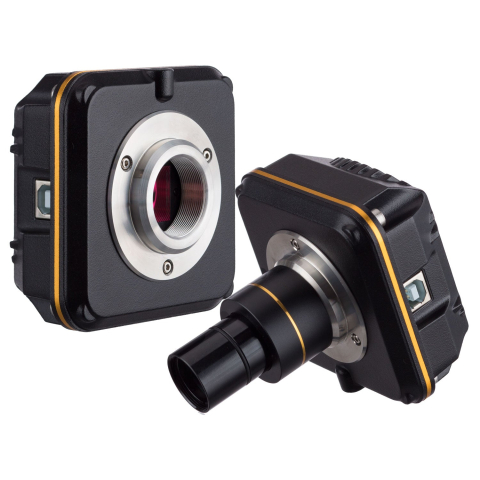

AmScope MU Series 9.0MP USB 2.0 High-performance Color CMOS C-Mount Microscope Camera with Reduction Lens

  • Universal USB 2.0 digital camera
  • Up to 9MP resolution and up to 47fps at lower resolution
  • User-friendly editing/processing software for Windows 8.1/10/11 with measuring, stitching and focus-stacking
  • View high-speed video while capturing high-resolution images
  • Fits four mounting sizes: 23mm, 30mm, 30.5mm, and C-mount

The MU900B is an updated version of our MU series cameras. With the universal USB 2.0 interface, this bus-powered 9MP camera is a go-anywhere imaging solution. Deriving power from the USB connection, MU series cameras can be used at home, in a lab, or in the field. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

With software available for Windows, Mac, and Linux, the MU series is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:

  • Sensor: Aptina (color)
  • Sensor Type: CMOS
  • Sensor Size: 5.83x4.37mm (1/2.4" class)
  • Pixel Size: 1.67 micrometers
  • Resolution: 9MP
  • Frame Rate: 47fps @ 872x654, 15fps @ 1744x1308, 3.9fps@3488x2616
  • Sensitivity: .31V/Lux-sec
  • Connectivity: USB 2.0
  • Compatibility: Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux
  • Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount

    • Software Specifications:

  • OS Requirements: Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0
  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Lifetime free software upgrades

    • Contents:

  • One 9MPUSB2.0 Digital Camera
  • One Reduction Lens
  • One 6' (1.8m) USB Cable
  • Two Adapters: 30mm and 30.5mm
  • One CD with Software and User's Instructions
