Key Features:
- 3.1MP back-illuminated CMOS camera
- Higher quantum efficiency
- Multi-platform software solutions
- Includes calibration slide for on-screen measurements

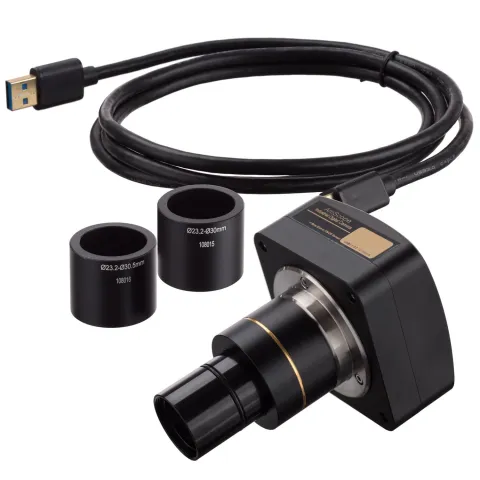

The 3.1MP USB2.0MU310-BI is part of our back-illuminated CMOS camera series. Back-illuminated CMOS sensors provide higher quantum-efficiency by moving the photo-diode layer in front of the electronic components, increasing photon-absorption. This translates to less image-noise and dark-current while maintaining high speeds.
The included software for Windows, Mac, and Linux provides an imaging solution for photography and videography. The Windows (XP/Vista/7/8/10) version provides an extensive toolset for image-processing and measurements. A lite version of the application is provided for Mac and Linux.
Camera Specifications:
Sensor: Sony IMX123 (color)Sensor Type: BSI CMOSSensor Size: 1/2.8" (6.46mm diagonal)Pixel Size: 2.5µm x 2.5µmSensor Pixels: 3.1MP (2048x1536)Sensitivity: 600mv (1/30s)Max Framerates: 10.5fps @ 2048x1536, 15fps @ 1920x1080Binning: 1x1Exposure Time: 0.105ms - 15sReduction Lens: 0.37XConnectivity: USB 2.0Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
