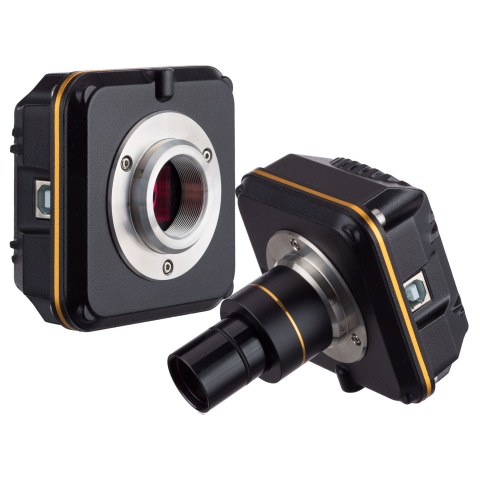

AmScope MU1400B 14MP USB 2.0 High-performance Color CMOS C-Mount Microscope Camera with Reduction Lens

14MP USB 2.0 High-performance Color CMOS C-Mount Microscope Camera with Reduction Lens

Key Features:

• Universal USB 2.0 digital camera
• Up to 14MP resolution and up to 35fps at lower resolution
• User-friendly editing/processing software for Windows XP/Vista/7/8/10 with measuring, stitching and focus-stacking
• View high-speed video while capturing high-resolution images
• Fits four mounting sizes: 23mm, 30mm, 30.5mm, and C-mount

The MU1400B is an updated version of our MU series cameras. With the universal USB 2.0 interface, this bus-powered 14MP camera is a go-anywhere imaging solution. Deriving power from the USB connection, MU series cameras can be used at home, in a lab, or in the field. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

With software available for Windows, Mac, and Linux, the MU series is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:

• Sensor: Aptina MT9F002 (color)
• Sensor Type: CMOS
• Sensor Size: 6.45x4.6mm (1/2.3" class)
• Pixel Size: 1.4 micrometers
• Resolution: 14MP
• Frame Rate: 35fps @ 1024x822, 10fps @ 2048, 1644, 2.7fps @ 4096x3286
• Sensitivity: .724V/Lux-sec
• Connectivity: USB 2.0
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
• Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - live video and still image capture can be set in different resolutions simultaneously
  More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
• Lifetime free software upgrades

Contents:

• One 14MPUSB2.0 Digital Camera
• One Reduction Lens
• One 6' (1.8m) USB Cable
• Two Adapters: 30mm and 30.5mm
• One CD with Software and User's Instructions
