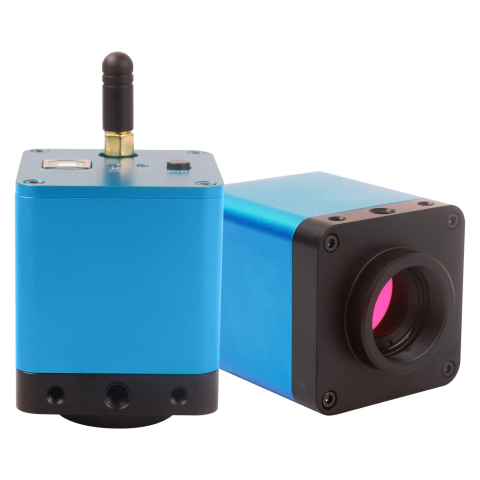

AmScope MU Series 720p HDMI + Wi-Fi Color CMOS C-Mount Microscope Camera

  • 720p 15ps Wi-Fi digital microscope camera with C-mount
  • USB or WiFi connectivity for PC control and capture
  • Includes 0.37X reduction lens, and 30mm + 30.5mm mounting adapters
  • Includes USB power adapter
  • User-friendly software for Windows 8.1/10/11 offers editing/processing and advanced features including Stitching and Focus-stacking

The MU100-WU is a USB-powered 720p WiFi camera delivering video up to 15fps. The camera can be tethered to a computer using a simple USB 2.0 connection, or through WiFi, using USB for power only with the included power adapter. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with the included reduction lens and adapters to mount to 23mm, 30mm, and 30.5mm photo and ocular ports.

The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:

  • Sensor: Aptina (ON) MT9P001 (color)
  • Sensor Type: CMOS
  • Sensor Size: 5.70x4.28mm (1/2.5" class)
  • Pixel Size: 2.2μm
  • Still Resolution: 720p
  • Video Resolution: 720p
  • Frame Rate: 15fps @ 1280x720
  • Sensitivity: 0.53V/Lux-sec
  • Connectivity: USB 2.0, WiFi
  • Compatibility: Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux
  • Mounting Sizes: C-mount, 23mm, 30mm, 30.5mm
  • Power: USB 5V

    • Software Specifications:

  • OS Requirements: Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB power source
  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - gives your computer screens the same field of view as your microscope's eyepiece
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Lifetime free software upgrades

    • Contents:

  • One WiFi Digital Camera
  • One USB Power Adapter
  • One USB Cable
  • One 0.37X Reduction Lens
  • One 23mm to 30mm Adapter
  • One 23mm to 30.5mm Adapter
  • One Software CD
    • ⚠️ Attention CA Residents: Prop 65 Warning
