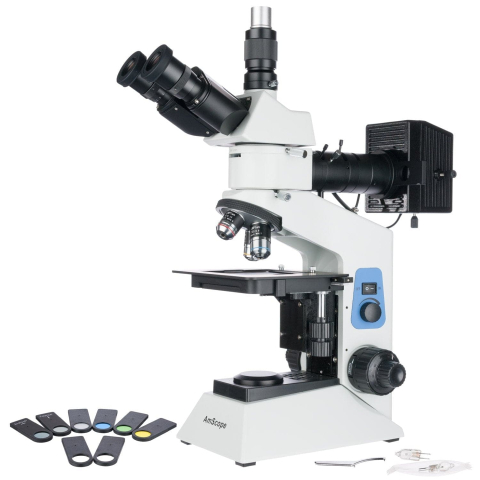

AmScope ME580T-PZ-3M ME580 Series Compact Metallurgical Upright Trinocular Compound Microscope 50X-500X Magnification w/ Polarized Light 3MP USB 2.0 C-mount Camera

Key Features:

• 50X to 500X magnification using 10X eyepieces for three distinct settings.
• A compact multi-purpose microscope with reflected illumination and simple polarization for observation of metals, plastics, and other materials.
• Use a combination of reflected lighting and simple polarization to bring out complex details such as stress in metal and other materials.
• The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
• Monitor and capture photos and videos with the included 3MP USB 2.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.

This is a feature-packed, economical metallurgical microscope with an upright design, and 30W polarized-light episcopic illumination. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction across three magnification levels: 50X, 100X, 500X. The Siedentopf head with dual diopters and high-eyepoint eyepieces provide a comfortable and adjustable viewing platform. The dedicated photo port allows for simultaneous viewing and imaging.

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces, the magnification range spans from 50X to 500X with three unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

An advanced metallurgical microscopy system with reflected illumination

Polarized lighting for structural analysis

Includes a range of filters for lighting manipulation

5X, 10X, and 50X long-working-distance metallurgy objectives

Co-axial coarse & fine focusing system

30 degree inclined 360 degree rotatable trinocular head

Coaxial coarse and fine focusing

Dual focusing control knobs

Focusing tension control mechanism

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Digital Imaging

Monitor and capture photos and videos with the included 3.0MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Packing List:

One microscope with trinocular Siedentopf head

Three LM Plan achromatic objectives (5X, 10X, 50X)

One pair 10X eyepieces

One Halogen episcopic illuminator module

One 6V 30W G4 halogen bulb

Six filters (polarizer, analyzer, green, blue, yellow, diffuser)

One AC cord

One dust cover

One tension wrench

One C-mount USB camera

One 0.5X reduction lens

Two sizing adapters

One USB Type B to USB type A cable

One software CD
