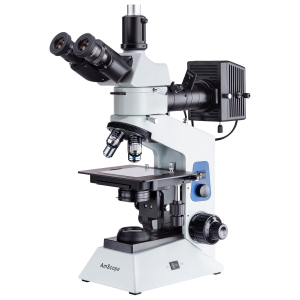

AmScope ME580T-PZ-2L-M ME580 Compact Trinocular Metallurgical Microscope 40X-500X w/ Dual-Illumination & 1.3MP USB 2.0 Camera

This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and incident illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform. There is also a dedicated photo port for simultaneous viewing and imaging.

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 500X with five unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

An advanced metallurgical microscopy system with incident and transmitted illumination

Polarized lighting for structural analysis

Includes a range of filters for lighting manipulation

5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives

4X, 10X, 40X achromat objectives

10X plan eyepieces for flat-field viewing

Co-axial coarse & fine focusing system

30 degree inclined 360 degree rotatable trinocular head

Coaxial coarse and fine focusing

Dual focusing control knobs

Focusing tension control mechanism

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Digital Imaging

Monitor and capture photos and videos with the included 1.3MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.37X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of software is available for Mac and Linux with essential functionality for capturing photos and videos.

Specifications:

Head: 30 degree inclined trinocular

Photo Port: CX type height-adjustable 23mm

Eyepieces: 10X

Interpupillary Adjustment: Siedentopf

Nosepiece: forward quadruple RMS thread

Tube length: 160mm

Metallurgical Objectives: 5X/0.13, 10X/0.25, 50X/0.6 long-working-distance plan achromatic DIN

Bright-field Objectives: 4X/0.1, 10X/0.25, 40X/0.65 achromatic DIN

Polarization System: removable analyzer/polarizer filters for episcopic lighting with +/- 25° adjustment

Focus System: coaxial coarse/fine focus

Focus Travel Range: 25mm

Fine-focus Precision: 0.002mm

Stage: 140mm x 132mm mechanical stage

Stage X-Y Movement: 75x50mm

Illumination: 30W reflected, 20W transmitted

Power: 90-240VAC 50/60Hz wide-band

Metallurgical Objective Lenses
Magnification	Corrections	NA	Working Distance	Cover-glass Thickness
5X	Plan-achromatic	0.13	15.5mm	0
10X	Plan-achromatic	0.25	8.7mm	0
50X	Plan-achromatic	0.60	5.1mm	0

Biological Objective Lenses
Magnification	Corrections	NA	Cover-glass Thickness
4X	Achromatic	0.10	—
10X	Achromatic	0.25	0.17
40X	Achromatic	0.60	0.17

Camera Specifications
Sensor Type	CMOS
Sensor Optical Format	1/3"
Active Pixels	1.3M (1280 x 1024)
Pixel Size	3.6µm x 3.6µm
Active Sensor Area	4.60mm x 3.70mm
Shutter	electronic rolling shutter
Sensitivity	1.0V/Lux-sec
Spectral Response	380-650nm with IR-cut filter
Capture Resolution and Maximum Framerate	15fps @ 1280x1024 26fps @ 640x512 50fps @ 320x256
Connectivity	USB 2.0
Lens-mount	C-mount
Compensating Lens	0.37X
Power	5VDC over USB

Software

OS Requirements	Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements	Intel Core2 2.8GHz or comparable processor, 4GB RAM
Features	Windows Version Live video preview Captures still images and video Time-lapse capture Exposure and white-balance controls Dark-field correction Digital binning Image processing Measurement tools, including lines, arcs, polygons Segmentation and counting tools Image-stitching, extended depth-of-field, HDR Fluorescence color-mapping Mac/Linux Versions Live video preview Captures still images and video Exposure control Color adjustment Measurement tools, including lines, arcs, polygons

Packing List:

One microscope with trinocular Siedentopf head

One photo tube

Three LM Plan achromatic objectives (5X, 10X, 50X)

Three achromatic objectives (4X, 10X, 40X)

One pair 10X eyepieces

One sub-stage condenser

One Halogen episcopic illuminator module

One 6V 30W G4 halogen bulb

One 6V 20W G4 halogen bulb

Six filters (polarizer, analyzer, green, blue, yellow, diffuser)

One AC cord

One pack of lens tissues

One dust cover

One tension wrench

One C-mount USB camera

One 0.37X reduction lens

Two sizing adapters

One USB Type B to USB type A cable

One software CD
