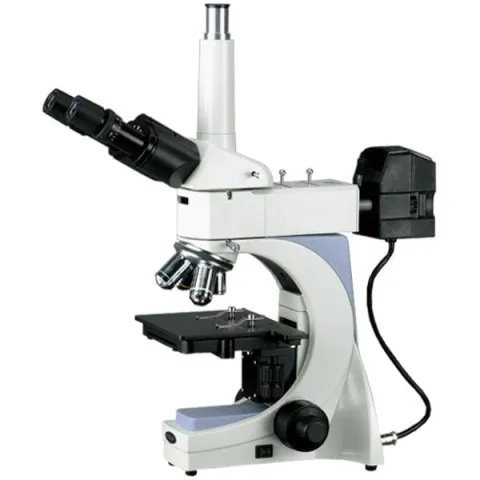

AmScope ME400TC-20MBI3 ME400 Series Infinity-Corrected Plan Upright Metallurgical Trinocular Compound Microscope 40X-1000X Magnification w/ 20MP USB 3.0 C-mount Camera

Key Features:

• 40X to 1000X magnification using 10X and 25X eyepieces for seven distinct settings.
• A compact metallurgical microscope for reflected-light analysis of metals, plastics, and other materials
• The infinity-corrected optical system eliminates certain optical errors when using filters and other in-line components, ensuring highly-precise images.
• The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
• Monitor and capture photos and videos with the included back-illuminated 20MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.

This professional infinity-corrected metallurgical microscope offers a wide magnification range and advanced features. It comes with four plan-achromatic objectives and a 30 degree inclined 360 degree swiveling trinocular head. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality control applications.

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X and 25X eyepieces, the magnification range spans from 40X to 1000X with seven unique settings. The infinity-corrected lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

An infinity plan metallurgical and metallographic microscope with 3MP camera!

Epi-illumination reflected light microscopy system

Fully coated optical system with high resolution

30 degree inclined 360 degree rotatable trinocular Siedentopf head

Four infinity-corrected plan-achromatic objectives included

Variable-intensity halogen epi-illumination

Two filter frames and one blue filter included

Large mechanical stage with stain resistant finish

Low position stage traveling controls

Full optical glass elements

Precise ground glass lenses

All metal mechanical parts

Coaxial coarse and fine focusing

Dual side focusing controls

Focusing tension control mechanism

Adjustable interpupillary distance

Adjustable diopter on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Digital Imaging

Monitor and capture photos and videos with the included high-resolution 20MP USB3.0 camera. The sensitive back-illuminated sensor is designed for improved low-light imaging, making it suitable for fluorescence and darkfield microscopy. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Packing List:

One Trinocular Compensation-Free Compound Microscope Head

One Microscope Body with Frame, EPI Illumination System and Base

One pair 10X eyepieces

One pair 25X eyepieces

Four Plan Achromatic Metallurgical Objectives, 4X, 10X, 20X & 40X

Two Filter Frames and One Blue Filter

One Power Cord

Dust Cover

One C-mount USB camera

One USB 3.0 Type B to USB 3.0 type A cable

One software CD
