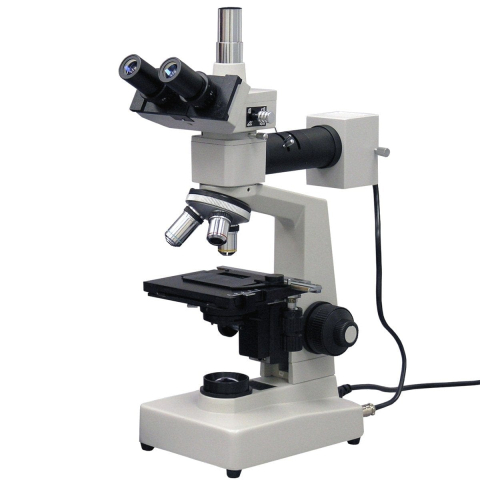

AmScope ME300TZB-2L-10M ME300 Series Metallurgical Trinocular Compound Microscope 40X-2000X Magnification w/ Dual-illumination and 10MP USB 2.0 C-mount Camera

Key Features:

• 40X to 2000X magnification using 10X and 20X eyepieces for eight distinct settings.
• An economical multi-purpose microscope with reflected and transmitted illumination for observation of materials and biological specimens
• Excellent for quality control in industrial and research applications including metallurgical labs, silicon wafer inspection, and foundries
• The trinocular head allows you to mount a camera without removing an eyepiece.
• Monitor and capture photos and videos with the included 10MP USB 2.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.

Unlike most other metallurgical microscopes, this model comes with both reflected and transmitted illumination. It is an ideal instrument for metallurgical and materials analysis. It is also a great microscopy system for viewing transparent materials including those in biological applications. It comes with a 30 degree inclined 360 degree rotatable trinocular head, coarse and fine focusing, mechanical stage, and halogen reflected and transmitted illumination system. This is an excellent metallurgical microscopy system for a variety of industrial and research applications including metallurgical labs, silicon wafer inspection, industrial Inspection, quality control, and foundries.

Change magnifications quickly using the four-lens turret without significant refocusing thanks to the parfocal design. Using the included 10X and 20X eyepieces, the magnification range spans from 40X to 2000X with eight unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

High quality trinocular professional upright metallurgical metallographic microscope with reflected and transmitted illumination system!

Perfect for detail examination and micro-analysis of surface structures of metallic materials!

Excellent for quality control in industrial and research applications including metallurgical labs, silicon wafer inspection, and foundries!

30 degree inclined 360 degree rotatable sliding trinocular head

Fully coated optical system with high resolution

23mm universal/standard photo port

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Four superior quality PLAN DIN objectives, 4X, 10X, 40X (spring), and 100X (spring)

Advanced epi-illumination design offers excellent halogen illumination and optimal image clarity

Epi-Illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls

Brightfield transmitted lighting system has 1.25 (N.A.) Abbe substage condenser, iris diaphragm and swing-out filter holder

Yellow, blue, green, and frosted filters included

Coaxial coarse and fine focusing system

Dual side focusing controls

Focusing tension control mechanism

Locking mechanism for controlling coarse focusing range and protecting objectives and specimens

Large graduated mechanical stage with stain resistant finish

Low position coaxial X-Y stage traveling controls

Solid metal frame construction with stain resistant enamel finish

Full optical glass elements

Precise ground glass lenses

All metal mechanical parts

Digital Imaging

Monitor and capture photos and videos with the included 10.0MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Packing List:

One microscope body

One trinocular microscope head

One episcopic illuminator assembly

Four Plan Objectives: 4X, 10X, 40X 100X

One pair 10X eyepieces

One pair 20X eyepieces

Four Filters: Yellow, Blue, Green and Frosted

One C-mount USB camera

One 0.5X reduction lens

Two sizing adapters

One USB Type B to USB type A cable

One software CD
