AmScope ME300TC-8M ME300 Series Metallurgical Trinocular Compound Microscope 40X-1000X Magnification with 8MP USB 2.0 Camera
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews








Overview

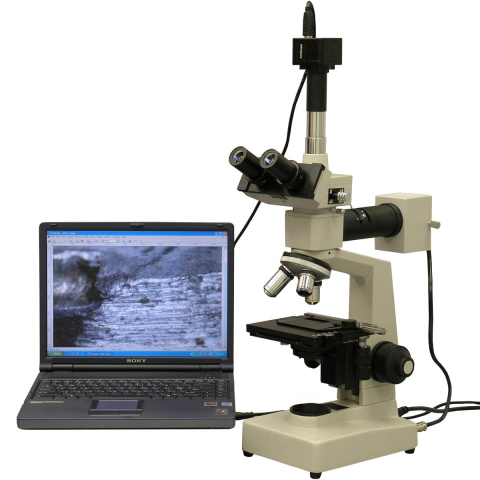

AmScope ME300 Series Metallurgical Trinocular Compound Microscope 40X-1000X Magnification with 8MP USB 2.0 Camera
- An economical metallurgical microscope for reflected-light analysis of metals, plastics, and other materials
- Three plan-achromatic objective lenses and two sets of eyepieces provide five unique magnifications ranging from 40X to 1000X
- Includes a 8MP USB 2.0 camera and specialized microscopy software for PC, Mac, and Linux
This is a brand new trinocular metallurgical microscope that offers five magnification settings, 40X, 100X, 250X, 400X & 1000X, and advanced features. It comes with a 30 degree inclined 360 degree swiveling trinocular head with a dedicated photo-port. The episcopic illumination system features both field- and aperture-diaphragm control for efficient, even lighting. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality-control applications.
The 8MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Features:
- High quality trinocular professional upright metallurgical metallographic microscope
- Perfect for detail examination and micro-analysis of surface structures of metallic materials!
- Excellent for quality control in industrial and research applications including silicon wafer inspection and foundries!
- Five total magnification settings: 40X, 100X, 250X, 400X & 1000X
- 30 degree inclined 360 degree rotatable sliding trinocular head
- Fully coated optical system with high resolution
- 23mm universal/standard photo port for adding photographic or video capability
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
- Three superior quality PLAN DIN objectives, 4X, 10X and 40X (spring)
- Two pairs of widefield eyepieces, 10X and 25X
- Advanced epi-illumination design offers excellent halogen illumination and optimal image clarity
- Episcopic illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls
- Yellow, blue, green, and frosted filters included
- Coaxial coarse and fine focusing system
- Dual side focusing controls
- Focusing tension control mechanism
- Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
- Large graduated mechanical stage with stain resistant finish
- Low position coaxial X-Y stage traveling controls
- Solid metal frame construction with stain resistant enamel finish
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical parts
- Manufactured under ISO 9001 quality control standards
- Excellent five (5) year factory warranty
Specifications:
- Nosepiece: Quadruple
- Focusing Range: 1-9/16" (40mm)
- Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
- Mechanical Tube Length: 6-5/16" (160mm)
- Head: 30 degree inclined trinocular
- Trinocular Port: 23mm universal/standard photo tube
- Eyepieces: WF10X (18mm field of view), Widefield 25X
- Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA)
- Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
- Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
- Vernier Division: 0.004" (0.1mm)
- Illumination: 20W halogen
- Power Supply: 110V
Camera Specifications:
- Sensor: Aptina
- Sensor Type: CMOS
- Sensor Size: 5.45x4.09
- Pixel Size: 1.67
- Resolution: 8.0MP
- Frame Rate: 1.9@3264x2448, 8@1600x1200, 27@800x600
- Sensitivity: 0.31 V/lux-sec
- Compatibility: Windows (32/64 bit) XP/Vista/7/8, Mac OSX, Linux
Software Specifications:
- OS Requirements: Windows (32/64 bit) XP/Vista/7/8, Mac OS 10.8+, Linux kernel 3.13+
- Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Packing List:
- One Trinocular Metallurgical Microscope Body with Episcopic Illumination System
- One Pair of Widefield 10X Eyepieces
- One Pair of Widefield 25X Eyepieces
- Three Plan Objectives: 4X, 10X, 40X
- Four Filters: Yellow, Blue, Green and Frosted (built-in already)
- User's Manual Download
- One 8MP USB2.0 Digital Camera
- One Reduction Lens
- Two Sizing Adapters
- One USB Cable
