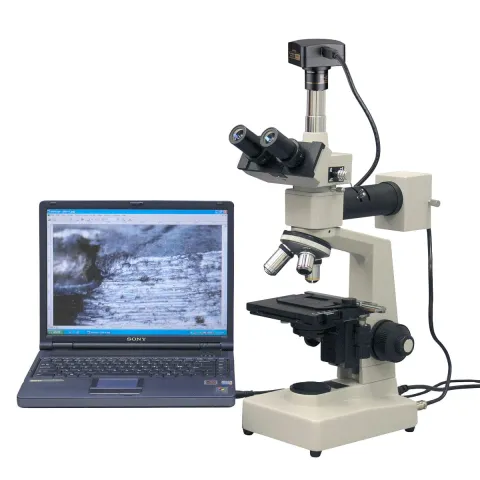

AmScope ME300 Series Metallurgical Trinocular Compound Microscope 40X-1000X Magnification with 16MP USB 3.0 Camera

  • An economical metallurgical microscope for reflected-light analysis of metals, plastics, and other materials
  • Three plan-achromatic objective lenses and two sets of eyepieces provide five unique magnifications ranging from 40X to 1000X
  • Includes a 16MP USB 3.0 camera and specialized microscopy software for PC, Mac, and Linux

This is a brand new trinocular metallurgical microscope that offers five magnification settings, 40X, 100X, 250X, 400X & 1000X, and advanced features. It comes with a 30 degree inclined 360 degree swiveling trinocular head with a dedicated photo-port. The episcopic illumination system features both field- and aperture-diaphragm control for efficient, even lighting. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality-control applications.

The 16MP USB 3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Features:

  • High quality trinocular professional upright metallurgical metallographic microscope
  • Perfect for detail examination and micro-analysis of surface structures of metallic materials!
  • Excellent for quality control in industrial and research applications including silicon wafer inspection and foundries!
  • Five total magnification settings: 40X, 100X, 250X, 400X & 1000X
  • 30 degree inclined 360 degree rotatable sliding trinocular head
  • Fully coated optical system with high resolution
  • 23mm photo port for camera
  • Adjustable interpupillary distance
  • Adjustable diopters on both eye tubes
  • Three superior quality PLAN DIN objectives, 4X, 10X and 40X (spring)
  • Two pairs of widefield eyepieces, 10X and 25X
  • Advanced epi-illumination design offers excellent halogen illumination and optimal image clarity
  • Episcopic illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls
  • Yellow, blue, green, and frosted filters included
  • Coaxial coarse and fine focusing system
  • Dual side focusing controls
  • Focusing tension control mechanism
  • Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
  • Large graduated mechanical stage with stain resistant finish
  • Low position coaxial X-Y stage traveling controls
  • Solid metal frame construction with stain resistant enamel finish
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical parts
  • Manufactured under ISO 9001 quality control standards
  • Excellent five (5) year factory warranty
  • Unbeatable lowest price guaranteed or the difference back!
  • Satisfaction guaranteed or your money back!

    • Specifications:

  • Nosepiece: Quadruple
  • Focusing Range: 1-9/16" (40mm)
  • Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Head: 30 degree inclined trinocular
  • Trinocular Port: 23mm universal/standard photo tube
  • Eyepieces: WF10X (18mm field of view), Widefield 25X
  • Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA)
  • Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
  • Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
  • Vernier Division: 0.004" (0.1mm)
  • Illumination: 20W halogen
  • Power Supply: 110V

    • Camera Specifications:

  • Sensor: Aptina (color)
  • Sensor Type: CMOS
  • Sensor Size: 6.18x4.66mm
  • Pixel Size: 1.335
  • Resolution: 16.0MP
  • Frame Rate: 26fps @ 1536x1160, 15fps @ 2320x1740, 6fps @ 4632x3488
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

    • Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS X, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

    • Packing List:

  • One Trinocular Metallurgical Microscope Body with Episcopic Illumination System
  • One Pair of Widefield 10X Eyepieces
  • One Pair of Widefield 25X Eyepieces
  • Three Plan Objectives: 4X, 10X, 40X
  • Four Filters: Yellow, Blue, Green and Frosted (built-in already)
  • One 16MP USB3.0 Digital Camera
  • One Reduction Lens
  • Two Sizing Adapters
  • One USB Cable
  • One Software CD
