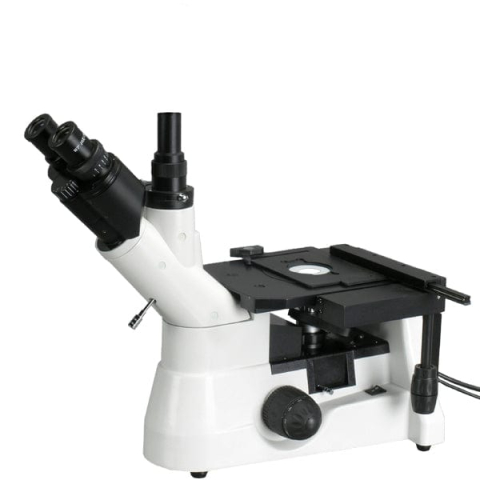

AmScope ME1400TC-INF 40X-1000X Trinocular Infinity-corrected Inverted Metallurgical Microscope w/ Polarization

40X-1000X Trinocular Infinity-corrected Inverted Metallurgical Microscope with Polarization

• An inverted microscope with simple polarization for manufacturing, QC, and materials analysis
• Four plan-achromatic objective lenses and two sets of eyepieces provide seven unique magnifications ranging from 40X to 1000X
• Use a combination of brightfield and simple polarization to bring out complex details such as stress in metal and other materials.
• The inverted format supports heavier and irregular samples like cut ore and metal fragments.
• The infinity-corrected optical system eliminates certain optical errors when using filters and other in-line components, ensuring highly-precise images.
• The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.

This brand new professional trinocular inverted polarizing metallurgical microscope comes with infinity metallurgical objectives and Epi-Kohler illumination. It offers 40X, 100X, 200X, 250X, 400X, 500X & 1000X magnification settings, designed to observe, identify and analyze the structures of metals and alloys. It comes with super widefield infinity optics, polarizer & Analyzer, quintuple nosepiece, 30W wide band voltage (85V-230V) EPI-Kohler illumination, and double-layer mechanical stage with coaxial coarse & fine focusing. This microscope is great for studying metallography, heat treatment and metal physics. It is widely used in the inspection of crystal structures, integrated circuits, semiconductor chips, micro-electronics, and etc.

Features :

• A professional infinity polarizing metallurgical inverted microscope!
• Seven magnification settings, 40X, 100X, 200X, 250X, 400X, 500X & 1000X
• 30W wide band (85V-230V) EPI-Kohler illumination with variable brightness
• Polarizer & Analyzer included
• Super widefield eyepiece with reticule 0.1mm
• Fully coated optical system with high resolution
• Sharp clear metallurgical microscopy images
• Upright photo port for photographic/video capability
• Diopter adjustment on ocular
• Extra large 3-D double layer mechanical stage with stain resistant finish
• Low position coaxial stage movement control knobs
• Coaxial coarse & fine focusing with CA knob tension control
• Top light house with filters
• Dual side mounted focusing controls
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Adjustable interpupillary distance
• Rugged cast alloy frame and stand with stain resistant enamel finish
• Manufactured under ISO 9001 quality control standard
• Excellent five (5) year factory warranty

Specification :

• Head: Compensation Free Trinocular Head, Inclined 45°
• Eyepiece: WH10X/20mm, WH25X and WH10X/20mm with reticule 0.1mm, super widefield
• Objective: infinity metallurgical objectives, 4X/0.1 (W.D. 25mm), 10x/0.25 (W.D.12mm), 20X/0.4 (W.D.10mm) and 40X/0.6 (W.D. 7.1mm)
• Nosepiece: quintuple
• Interpupillary Distance: 2"-3" (50mm-75mm)
• Mechanical Stage: two-layer; size: 9.53"x6.77" (242x172mm); traveling range: 3"x1.97" (75x50mm)
• Central Stage: 4.33" (110mm) in diameter
• Condenser: NA 0.3 Abbe with iris diaphragm, working distance: 3" (75mm)
• Focus: coaxial coarse & fine focusing system rack and pinion with tension control; fine focusing scale value 0.000079" (0.002mm)
• lllumination: Epi-Kohler 12V/30W, with aperture iris diaphragm and field iris diaphragm
• Power Supply: AC 85V-230V
• Filter: blue, green, yellow
• Polarizing Outfit: analyzer 360 degree rotatable, polarizer & analyzer can be slided in/out of the optical path
• Micrometer: 0.01mm

Packing List :

• One Trinocular Compensation-Free Head
• One Inverted Metallurgical Microscope Body with Frame, Base and Illumination
• Four Infinity Metallurgical Objectives, 4X, 10X, 20X & 40X
• One Pair of Super Widefield WH10X Eyepieces
• One Pair of Extreme Widefield WH25X Eyepieces
• One Super Widefield 10X Eyepiece with Reticule 0.1mm
• One 0.01mm Micrometer
• One 30W halogen bulb
• One Dust Cover
• Color Filters (Blue, Green, Yellow)
• Power Cord and Other Accessories
• User's Manual Download
• Shipping Weight: 55 lbs
