Overview

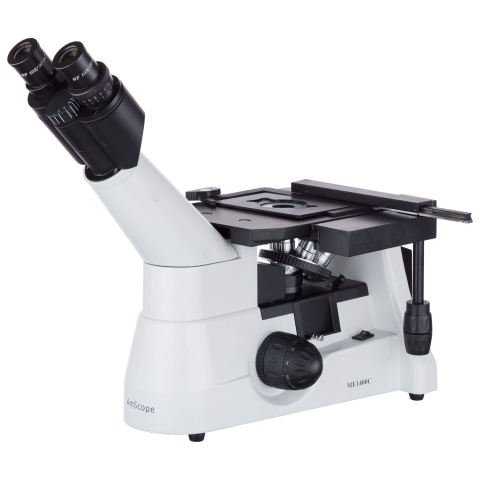

AmScope ME1400 Series Inverted Metallurgical Binocular Compound Microscope 40X-1000X Magnification

  • An inverted microscope with simple polarization for manufacturing, QC, and materials analysis
  • Four plan-achromatic objective lenses and two sets of eyepieces provide seven unique magnifications ranging from 40X to 1000X
  • Use a combination of brightfield and simple polarization to bring out complex details such as stress in metal and other materials.
  • The inverted format supports heavier and irregular samples like cut ore and metal fragments.

This is a professional binocular inverted polarizing metallurgical microscope with Epi-Kohler illumination. It offers 40X, 100X, 200X, 250X, 400X, 500X & 1000X magnification settings, designed to observe, identify and analyze the structures of metals and alloys. It comes with super widefield optics, polarizer & Analyzer, quintuple nosepiece, 30W wide band voltage (85V-230V) EPI-Kohler illumination, and double-layer mechanical stage with coaxial coarse & fine focusing. This microscope is ideal for studying metallography, heat treatment and metal physics. It is widely used in the inspection of crystal structures, integrated circuits, semiconductor chips, micro-electronics, etc.

Features :

  • A professional super widefield polarizing metallurgical inverted microscope!
  • Seven magnification settings, 40X, 100X, 200X, 250X, 400X, 500X & 1000X
  • 30W wide band (85V-230V) EPI-Kohler illumination with variable brightness
  • Polarizer & Analyzer included
  • Super widefield eyepiece with reticule 0.1mm
  • Fully coated optical system with high resolution
  • Sharp clear metallurgical microscopy images
  • Diopter adjustment on ocular
  • Extra-large 3-D double layer mechanical stage with stain resistant finish
  • Low position coaxial stage movement control knobs
  • Coaxial coarse & fine focusing with CA knob tension control
  • Top light house with filters
  • Dual side mounted focusing controls
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Rugged cast alloy frame and stand with stain resistant enamel finish
  • Manufactured under ISO 9001 quality control standard
  • Excellent five (5) year factory warranty

    • Specification :

  • Head: Compensation Free Binocular Head, Inclined 45°
  • Eyepiece: WH10X/20mm, WH25X and WH10X/20mm with reticule 0.1mm, super widefield
  • Objective: 195 metallurgical objectives, 4X/0.1 (W.D .25mm), 10x/0.25 (W.D .11mm), 20X/0.4 (W.D .9mm) and 40X/0.6 (W.D. 3.8mm)
  • Nosepiece: quintuple
  • Interpupillary Distance: 2"-3" (50mm-75mm)
  • Mechanical Stage: two-layer; size: 9.53"x6.77" (242x172mm); traveling range: 3"x1.97" (75x50mm)
  • Central Stage: 4.33" (110mm) in diameter
  • Condenser: NA 0.3 Abbe with iris diaphragm, working distance: 3" (75mm)
  • Focus: coaxial coarse & fine focusing system rack and pinion with tension control; fine focusing scale value 0.000079" (0.002mm)
  • lllumination: Epi-Kohler 12V/30W, with aperture iris diaphragm and field iris diaphragm
  • Power Supply: AC 85V-230V
  • Filter: blue, green, yellow
  • Polarizing Outfit: analyzer 360 degree rotatable, polarizer & analyzer can be slided in/out of the optical path
  • Micrometer Slide: 0.01mm

    • Packing List :

  • One Binocular Compensation-Free Head
  • One Inverted Metallurgical Microscope Body with Frame, Base and Illumination
  • Four Metallurgical Objectives, 4X, 10X, 20X & 40X
  • One Pair of Super Widefield WH10X Eyepieces
  • One Pair of Extreme Widefield WH25X Eyepieces
  • One Super Widefield 10X Eyepiece with Reticule 0.1mm
  • One 0.01mm Micrometer Slide
  • One 30W halogen bulb
  • One Dust Cover
  • Color Filters
  • Power Cord and Other Accessories
  • User's Manual
  • Shipping Weight: 55 lbs
