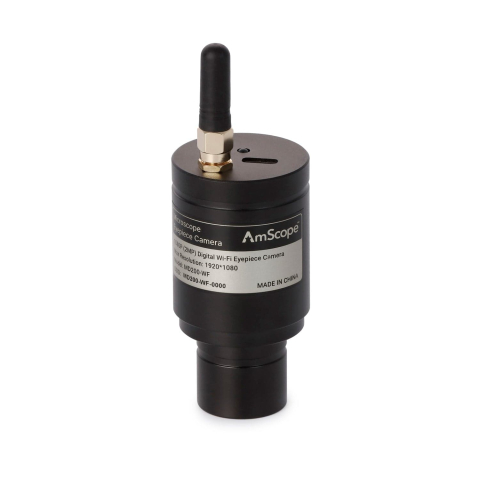

AmScope MD200-WF AmScope Wi-Fi Digital Eyepiece Microscope Camera - 1080P 2MP Color CMOS
Click to zoom
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


AmScope MD Series Wi-Fi Digital Eyepiece Microscope Camera - 1080P 2.0MP Color CMOS

  • 1080p 2MP Wi-Fi digital camera captures photos & live videos on Windows 8.1/10/11, Mac OS.
  • Easy setup and connection to begin viewing live specimens over Wi-Fi connection on your PC, Laptop, or Mac.
  • User-friendly software for Windows offers editing/processing and advanced features including Stitching, EDF, Video Recording and Measurement functions.
  • Mac software records video and still images, with controls for exposure and color.
  • Camera Software Download Windows and Mac.

A Wi-Fi Webcam for Your Microscope

AmScope's MD series digital eyepiece cameras are lightweight and compact, making them perfect companions to any microscope. Another huge benefit is their ability to be used with popular video conferencing apps just like a webcam. This is because they use UVC protocol, making them plug-and-play compatible on most platforms, including Windows, Mac OS, and Linux. Whether remote-streaming a QC line or participating in an online class, the MD series digital eyepiece can connect you to the world.

The MD200-WF is an ultra-compact 2MP Wi-Fi digital microscope camera, ideally suited for use as an eyepiece camera. It will fit 23mm ocular or photo ports. Connect directly to the camera from your PC of MAC under the Wi-Fi settings to begin live-viewing specimens.

With software available for Windows and MAC, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images.

Specifications

Sensor
Sensor ModelSony IMX307LQR-C
Sensor TypeCMOS (color)
Sensor Size1/2.8" format (5.73mm x 4.30mm)
Pixels2M
Pixel Size2.9μm x 2.9μm
ShutterElectronic Rolling shutter
Sensitivity1300mV @ 1/30s (f/5.6)
Camera
Frame Rate(s)25fps @ 1920 x 1080
ConnectivityWi-Fi
Mounting Size23mm
Compensating Lens-
Power5V over USB
Dimensions27.2mm Ø x 40mm
Operating Temperature-10-50°C
Operating Humidity30-80%

Software

OS RequirementsWindows (32/64 bit) 7/8/10/11, Mac OS 10.11+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 2GB RAM, USB 2.0
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Contents:

  • One 2MP Digital Camera
  • One Wi-Fi Antenna
  • One USB-C Power Cable
  • One USB Power Adapter
