Overview

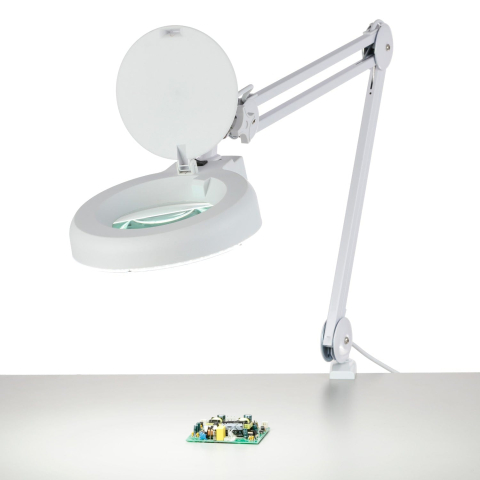

AmScope 2.25X Magnification 5" Diameter Lens 90 LED Desk Clamp Magnifying Lamp
Features:
- This 2.25X magnification 5 diopter magnifying lamp can rotate 360 degrees and using the articulating arm be perfectly positioned for any task at home, in the office for in any industrial inspection application.
- 90 LED lights provide ghost, glare and flicker-free illumination of any object being inspected.
- The well-balanced metal arm has three points of adjustment and the magnifying head can be locked into position using an easy-to-use thumb screw. The large 5" diameter optic allows for a large field of view from any angle.
- Includes a lens cover to prevent damage to the lens and to keep it clean when not in use.
- The table clamp easily screws onto any surface from .4" to 2.4" high.
- Includes a power cord with on/off switch located on the lamp head.
New from AmScope - our new magnifying lamp comes standard with a bright, eye-friendly 9W LED and glass lens that magnifies objects 2.25X larger than the original size. This magnifying lamp is specially designed to provide the best lighting experience without ghost, glare, or flicker helps reduce eye strain, and reveals crystal-clear, true-to-life colors while saving energy with a low power draw.
Three points of adjustment on the sturdy metal arm allow you to lock the lamp head at any position as needed. Comes with a surface clamp to allow for optimal placement and mobility within your workspace. Perfect for electronics manufacturing, manufacturing inspection, soldering, repair work, lab work, medical and dental offices, studying, writing, reading, etc.
Specifications:
Light Source | 90 SMD (Surface Mounted Diode) LED |
Lamp Wattage | 18W |
Lumens | 1250 |
Color Temperature | 6000-7000k |
Magnification | 2.25 |
Lens Size | 5" |
Lens Material | Glass |
Lamp Head Dimension | 11.25" x 8" x 2.2" |
Arm Length | 17" x 2 |
Arm Adjust Degrees | 360° |
Max Distance From Light Source to Surface | 27" |
Dimmable | No |
Power Source | Plug in Wall Outlet |
Voltage | AC 110-120V 60Hz |
Weight | 8 lb. |
Package Dimension | 24.25" x 10.75" x 6.75" |
Color | White |
Quick Installation Guide/Product Manual | Download |
Certifications | CE, RoHS |
What's Included?
- Magnifying Lamp
- Surface Clamp
