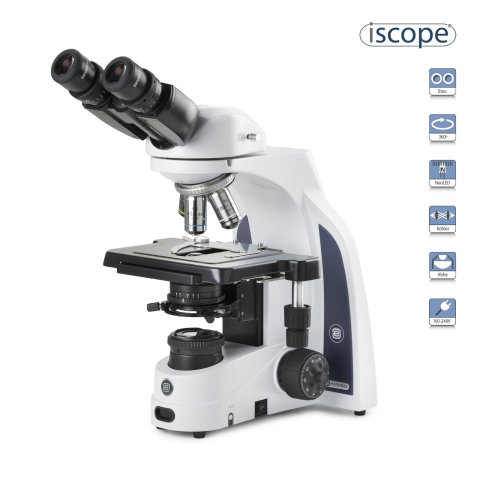

AmScope IS1152-PLI Euromex iScope Binocular Compound Microscope 40X-1000X Magnification with Plan IOS Objectives

Euromex iScope Binocular Compound Microscope 40X-1000X Magnification with Plan IOS Objectives

Key Features:

• Versatile microscope with cable management system designed for optimal working space for any laboratory or educational setting
• Quintuple objective turret provides instant access to 5 different magnification levels from 40X to 1000X
• Features a Siedentopf binocular head with height adjustable ocular tubes for comfort and minimized fatigue
• Equipped with adjustable NeoLED™ illumination powered by an internal 110-240V power supply, suitable for worldwide use

iScope - A masterpiece in microscopy

The iScope IS1152-PLi is suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications. Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epi- illumination sources for fluorescence applications can be used.

Features:

• EWF 10x/22mm
• Binocular model
• Quintuple reversed nosepiece
• 187/230 x 140mm rackless stage
• 3 W NeoLED Kohler illumination
• iCare sensor for energy saving
• CSS - Cable Storage System

Specifications:

EYEPIECES

• Extended Wide Field HWF plan 10x eyepieces with 22mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan and plan phase systems and adjustable diopter on the left tube for EPLi systems

HEAD

• Binocular Siedentopf type heads with 30 degree inclined tubes. Interpupillary distance from 48 to 76mm
• A unique rotating system allows the ergonomic positioning of both tubes in a high (431mm) and in a low position (397mm)

NOSEPIECE

• Revolving quintuple reversed nosepiece for max. five objectives

STAGE

• 187/230 x 140mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage. The iScope rackless stage has no protruding parts, enables more smooth movements and is safer.

CONDENSER FOR BRIGHTFIELD

• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion IOS objectives for economical phase contrast. With magnification indication.

CONDENSER FOR DARKFIELD

• A state-of-the-art condenser equipped with reflective cardioid mirrors, a high powered 5 W LED and a S100x objective with built-in iris diaphragm enable a real 1000x magnification darkfield solution

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control.

ILLUMINATION

• 3 W adjustable NeoLED diascopic illumination with internal 100-240 V power supply for brightfield and phase contrast models
• The innovative NeoLED design offer larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
• The Kohler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics

ICARE SENSOR

• The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position

CSS - CABLE STORAGE SYSTEM

• iScope allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

PACKAGE CONTENT

• Supplied with power cord, dust cover, a spare fuse and user manual. All packed in polystyrene boxes.
