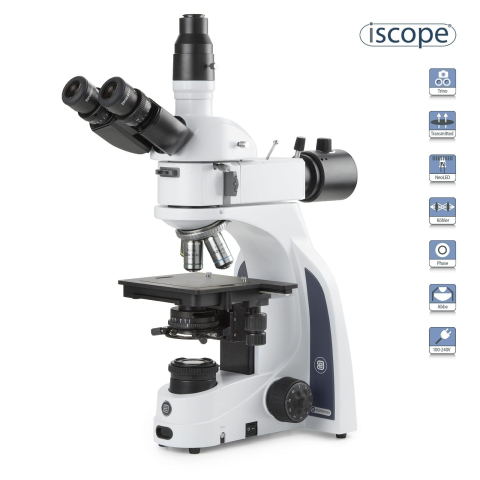

AmScope IS1053-PLMI Euromex iScope Series Materials and Metallurgy Trinocular Compound Microscope 50X-500X Magnification

Euromex iScope Series Materials and Metallurgy Trinocular Compound Microscope 50X-500X Magnification

Key Features:

• 50X-500X Magnification
• Trinocular head
• Diascopic 3 W NeoLED Kohler illumination
• 150 x 140mm rackless stage equipped with integrated 78 X 53mm mechanical stage
• EWF 10x/20mm eyepieces
• Infinity corrected IOS objectives
• Quintuple reversed nosepiece
• iCare sensor for energy saving
• CSS - Cable Storage System

iScope - A masterpiece in microscopy

The iScope IS1053-PLMi is suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications. Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epi- illumination sources for fluorescence applications can be used.

Features:

• EWF 10x/20mm eyepieces
• Trinocular model
• Infinity corrected IOS objectives
• Quintuple reversed nosepiece
• 150 x 140mm rackless stage equipped with integrated 78 X 53mm mechanical stage
• Diascopic 3 W NeoLED Kohler illumination
• iCare sensor for energy saving
• CSS - Cable Storage System

Specifications:

EYEPIECES

• Supplied with extended EWF 10x/20mm eyepieces

HEAD

• Trinocular Siedentopf type heads with 30 degree inclined tubes. Interpupillary distance from 48 to 76mm. Two ± 5 diopter adjustments. A unique rotating system allows the ergonomical positioning of both tubes in a high (431mm) and in a low position (397mm)

NOSEPIECE

• Revolving quintuple reversed nosepiece on ball bearings

OBJECTIVES

• Plan PLMi infinity corrected objectives for material observation. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAGE

• 150 x 140mm stage equipped with double slide holder and integrated 78 x 53mm mechanical stage. Supplied with a plain metal and plain glass insert

STANDARD CONDENSERS

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control

REFLECTED ILLUMINATION

• Equipped with a reflected NeoLED illumination and external 100-240 V power supply. Supplied with a 0-90 degree polarization filter in slider, analyserin slider and a white, green, blue, yellow filter in slider

TRANSMITTED ILLUMINATION

• 3 W adjustable NeoLED diascopic illumination with internal 100-240 V power supply for Brightfield

ICARE SENSOR

• The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position

CSS - CABLE STORAGE SYSTEM

• Allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

PACKAGE CONTENT

• Supplied with power cord, dust cover, user manual. All packed in polystyrene boxes
