Overview

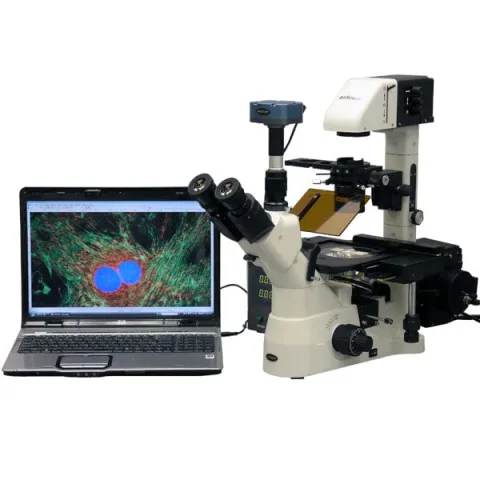

AmScope IN480 Series Inverted Infinity-corrected Phase-contrast Fluorescence Trinocular Compound Microscope 40X-900X Magnification with Koehler Illumination and 3MP SCMOS Camera

  • Designed for fluorescence microscopy, this microscope uses a high-power arc-lamp to cover a wide excitation range.
  • The inverted format is a stable, ergonomic platform for cell cultures, multi-well plates, and larger specimen containers.
  • Five plan-achromatic objective lenses and two sets of eyepieces provide nine unique magnifications ranging from 40X to 900X
  • The infinity-corrected optical system eliminates certain optical errors when using filters and other in-line components, ensuring highly-precise images.
  • Specialized 10X, 20X, and 40X objective lenses are included for phase-contrast applications, further improved by the fully-customizable Koehler illumination system.
  • Includes a 3MP color SCMOS camera with active cooling, and specialized microscopy software for PC

This is a brand new professional inverted trinocular phase contrast fluorescence microscope with 1.3MP fluorescent image system, offering crystal clear high quality images and advanced features. The microscope comes with a complete fluorescence kit, color corrected infinity optical system, and super large working distance condenser. Its high eye-point PLAN eyepieces, infinity large working distance Achromatic and phase contrast PLAN objectives provide nine brightfield magnification powers, 40X, 60X, 100X, 150X, 200X, 300X, 400X, 600X & 900X, and six phase contrast settings, 100X, 150X, 200X, 300X, 400X & 600X. It has a advanced adopted 30 watt Kohler illumination system designed for 90-240V wide voltage power supply.

The highly-sensitive 1.3MP digital camera captures low-light still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac, there is a lite version with limited processing features.

This microscopy package is a perfect instrument for professional laboratory applications including observing tissue cultures in dishes and examining specimens in glass containers.

Features :

  • A high quality professional phase contrast tissue culture microscope!
  • A research-grade inverted microscopy system!
  • Nine brightfield magnification settings, 40X, 60X, 100X, 150X, 200X, 300X, 400X, 600X & 900X
  • Six phase contrast magnification powers, 100X, 150X, 200X, 300X, 400X & 600X
  • Eight high quality bright field and phase contrast objectives
  • Two pairs of high eye-point PLAN eyepieces
  • Color corrected infinity optical system (CSIS)
  • Gemel type of trinocular head, 45 degree inclined
  • Fully coated optical system with high resolution
  • Crystal clear sharp images
  • Adopt 90-240V halogen illumination system
  • Upright photo port for photographic/video capability
  • Movable N.A. 0.3 condenser
  • Adjustable phase center
  • Above-stage condenser with moving and focusing knobs and swing-out filters
  • Stage moving-stop mechanism to protect slides and objectives
  • Diopter adjustment on ocular
  • Top light house with filters
  • Spare bulb, fuse and dust cover
  • Extra large 3-D double layer mechanical stage with stain resistant finish
  • Low position coaxial stage movement control knobs
  • Coaxial coarse fine focusing with CA knob tension control
  • 30watt Kohler halogen illumination system with variable brightness
  • Dual side mounted focusing controls
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Rugged cast alloy frame and stand with stain resistant enamel finish
  • Manufactured under ISO 9001 quality control standard
  • Excellent five (5) year factory warranty
  • Package: 2
  • Package Dimension: 33"x27"x16" and 13"x8"x9"
  • Shipping Weight: 120 lbs



Specifications:


NAMESPECIFICATION
OpticalColor corrected infinity optical system (CSIS)
HeadGemel type of trinocular head, 45 degree inclined
Interpupillary2"-3" (50-76mm)
EyepiecePL10X/22mm high-eye point PLAN eyepieces
PL15X/16mm high-eye point PLAN eyepieces
NosepieceReversed quintuple nosepiece
ObjectiveInfinite long work distance PLAN achromatic objective: LWD PL4X,10X,20X, 40X, 60X
Infinite long work distance PLAN phase-contrast objective: LWD PH10X,20X,40X
Focus SystemFine and coarse coaxial focusing, torque adjustment for coarse
Working distance of every circle: coarse focus: 38mm, fine focus: 0.2mm, precision 0.002mm
Total working distance: upward 6.5mm & downward 2.5mm from focus position (1.5mm above stage)
StageDimension: 6-1/4"(W)x9-7/8"(L)(160x250mm); ready to be extended for extra space by the optional stage extension boards
Dimemsion of stage extension board: 2-3/4"(W)x7"(L)(70x180mm)
Mechanical StageTraveling range: 4-3/4"(X-direction) x 3-1/8"(Y-direction) (120x80mm)
Low-position coaxial focusing
Petri dish holder
Transmitted Illumination90-240V wide voltage power supply, 6V/30W Halogen bulb; pre-centered, adjustable brightness
Super large working distance condenser NA=0.3, WD=72mm
Reflected fluorescence illuminationB,G filter blocks, with centering view field diaphragm and sliding filter preventing board
Mercury light houseCentering mercury bulb 100W, with adjusting reflected lens
Fluorescence power supply100-240V input AC power supply
Light house dimensions: 9-1/4"(L)x5-1/4"(W)x6-1/8"(H) (236x134x156mm)
Operating ConditionIndoor Use: The highest height above sea level: 2000 M
Temperature: 5 - 40 degree(C) (41 - 109 degree(F))
Humidity: 80% for 31 degree (C) (88 degree(F))
70% for 34 degree(C) (93 degree(F))
60% for 37 degree(C) (99 degree(F))
50% for 40 degree(C) (104 degree(F))
Pollution: 2 (See IEC664)


Filter blockModuleSpecificationFluorescence dyes
B1Exciter
Dichroic
Emitter
40X
60X		475AF40
505DRLP
535AF45		EGFP, FITC, Cy2@, AlexaFluor@488, DIO, Fluo-4
G1Exciter
Dichroic
Emitter		560AF55
595DRLP
645AF75		Texas Red@, Texas Red@-X, Cy3.5@, Mito Tracker@ Red
