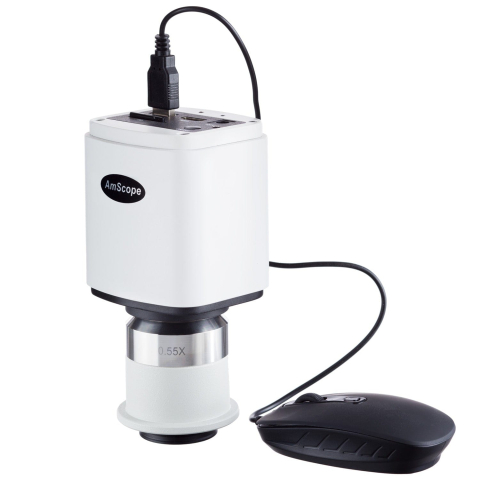

AmScope HD1080-NI05 1080p 60fps 2MP HDMI High-sensitivity Color CMOS C-mount Microscope Camera with 0.55X Adapter for Nikon Microscopes for Stand-alone and PC Imaging

  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
AmScope HD1080-NI05 1080p 60fps 2MP HDMI High-sensitivity Color CMOS C-mount Microscope Camera with 0.55X Adapter for Nikon Microscopes for Stand-alone and PC Imaging
Click to zoom
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


AmScope HD Series 1080p 60fps 2MP HDMI High-sensitivity Color CMOS C-mount Microscope Camera with 0.55X Adapter for Nikon Microscopes for Stand-alone and PC Imaging

  • Live Resolution: 1920x1080
  • Frame Rate: 60fps @ 1920x1080 via HDMI, 30fps @ 1920x1080 via USB2.0 & SD Card Slot Recording
  • Image Storage: SD Card Slot
  • Video Recording Frame Rate: 30fps via USB2.0 & SD Card Storage

Our brand new 1920x1080, 60fps via HDMI, 30 fps via USB2.0 digital camera kit allows for live viewing and recording of your microscope image with ease and extremely high quality! Now, viewing your microscope's image digitally has never been easier--simply connect the camera to any monitor via HDMI, and connect any USB mouse as well, and you're up and running with crystal clear image quality and a completely live, stutter free, lag free, 60 fps image on screen. On screen adjustments can be easily made for exposure, saturation, brightness, contrast, tint, and noise reduction to provide you with the best image possible for any application. Compatible with stereo microscopes and compound microscopes, whether your needs are biological, industrial, gemological, or any other type of microscopy, this camera will provide flawless results--even for low light fluorescent imaging!

The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, and this package comes with a 0.55X reduction lens for Nikon microscopes, including: E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti series, SMZ800, SMZ1000, and SMZ15000.

Sensor
ModelIMX236 (color)
Sensor TypeCMOS
Sensor Optical Format1/2.8"
Active Pixels2.07M (1920 x 1080)
Pixel Size2.8μm x 2.8μm
Active Sensor Area5.38mm x 3.02mm
Shutterelectronic rolling shutter
Sensitivity510mV @ 1/30s (f/5.6)
Spectral Response380-650nm with IR-cut filter
Camera
Video Preview Resolution (HDMI)1920 x 1080
Video Preview Framerate (HDMI)60fps
Video Capture Resolution1920 x 1080
Video Capture Framerate30fps
Photo Capture Resolution1920 x 1080
Recording MediaSecureDigital card
ConnectivityHDMI, USB 2.0
Lens-mountC-mount
Compensating Lens0.37X (optional)
Power12VDC 2A
Dimensions78mm x 70.8mm x 90.7mm

Adapter Specifications :

  • Power: 0.55X
  • Sensor Compatibility: 1/1.8" to 1/2.5"
  • Compatibility: Nikon E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti series, SMZ800, SMZ1000, SMZ15000
  • Built-in Software Features
  • - Captures Still Images & Records Video
  • - 1080p Video Recording (30 fps)
  • - Auto Exposure & Manual Exposure Setting Options
  • - Saturation, Brightness, Contrast, & Tint Options
  • - Auto White Balance Functionality
  • - 3D Noise Reduction
  • - ROI Magnification Functions (Image Flip, Rotation, ROI)
  • - Image Side by Side Comparison Functionality
  • - Built-in File Browser
  • Packing List
  • TC2 Camera Body
  • HDMI Cable
  • Power Supply
  • ⚠️ Attention CA Residents: Prop 65 Warning
