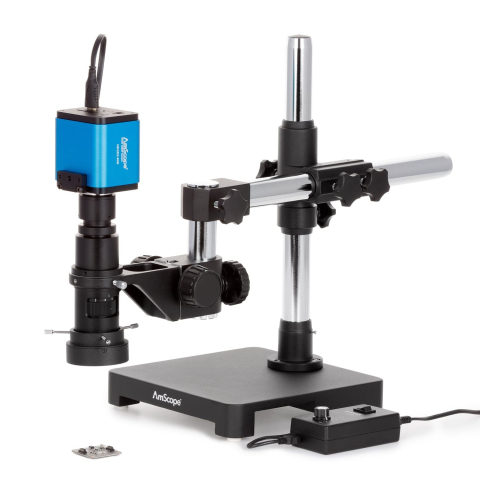

AmScope H800-SAB-96S-HD2 H800 Series Zoom Inspection Monocular Stereo Microscope 0.7X-5X on Single-Arm Boom-Stand w/ LED Ring Light and 1080P HDMI C-mount Camera

Key Features:

• A highly-versatile zoom microscope on a robust, single-arm boom-stand which allows the microscope to be positioned at virtually any angle
• Monocular C-mount microscope with extremely sharp 0.7X-5.0X zoom objective and integrated 0.4X reduction element ideal for cameras with 1/2" format sensors
• Includes a 96-LED ring-light for bright, even illumination
• Produces sharp images over a wide field of view, with plenty of room to work with its long working distance
• Includes a 1080p/2MP multi-function camera with built-in recording that can stream live video over HDMI and connect to a computer using USB

The H800 is designed specifically for photomicrography, providing 0.7X-5X zoom magnification and a C-mount interface for most professional microscope cameras. While stereo microscopes are the preferred choice for low-magnification work like micro-soldering and dissection, the stereo lens design is not optimal for producing accurate photos or videos due to off-axis, angular distortion and keystoning. This single-lens microscope provides the same magnification range, but without the distortion.

The 0.7X-5X zoom objective lens produces exceptionally sharp images throughout the entire range. The C-mount camera interface is height-adjustable, allowing precise parfocal adjustments to keep the lens in focus throughout the zoom range. The microscope has an integrated 0.4X reduction element optimized for cameras using 1/2" format sensors, providing more field-of-view.

An optional adapter is available (AD-C23) to convert the C-mount interface into a 30mm or 23mm tube which can be used with eyepieces or camera reduction lenses. If you choose to use this microscope with an eyepiece or one of our 23mm DSLR adapters, this optional adapter is exactly what you would need.

The multi-pivoting stand provides a stable, flexible support system, ideal for hands-on work. The single-arm design provides heavy-duty support in a simple form. The microscope lens can be turned 360°, the focus-block can swing in either direction, and the lateral arm can rotate and swing to position the lens at virtually any angle. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.

This model includes a 96-LED ring-light to provide bright, even lighting. Mounted on the microscope, the light follows the lens so the subject is always illuminated. The light intensity is controlled by a wired, remote power module which keeps control at your fingertips.

This microscope comes with a 1080p multifunction camera which can be used to record directly while streaming images to a monitor or TV, or with a computer. Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps, while recording directly to a Secure Digital card at 25fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure. Optionally, a companion HDMI monitor can be attached directly to the camera, creating a self-sufficient turnkey system.

As an alternative solution, connect the camera to a computer via USB for remote software control. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Packing List:
