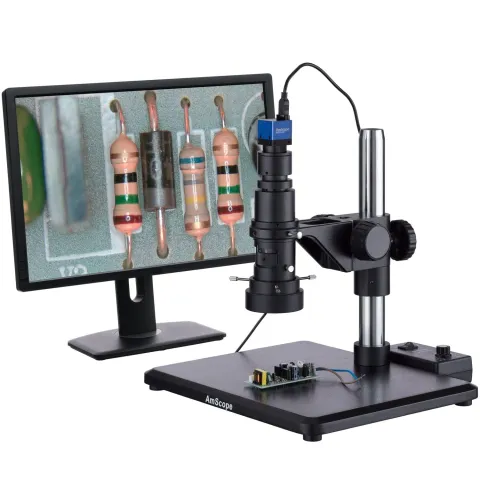

AmScope H800 Series Zoom Digital Inspection Monocular Stereo Microscope 0.7X-5X Magnification on Track Stand with 3.1MP USB Camera and Ring Light

Features:

  • 0.7X-5.0X zoom magnification power offering sharp images
  • Metal framework with solid base plate
  • High-speed 3.1MP USB 2.0 camera
  • Frame-rates up to 83fps
  • Long working distance

This high-speed inspection system includes a zoom monocular microscope, a 96-LED ring-light, and a 3.1MP USB 2.0 camera with frame-rates up to 83fps. The .7X to 5X microscope produces a highly-detailed image -- ideal for industrial or biological inspection. The C-mount camera adds high-speed video and still-image capabilities when used with your computer. The optimized digital sensor and imaging-buffer provide extremely high frame-rates. Using the USB interface for both connectivity and power, only a single cable is needed.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Features:

  • 0.7X-5.0X zoom objective
  • C-mount lens
  • Long working distance
  • Sharp images over a super wide field view
  • Stable, all-metal pillar-stand
  • Cool, even 96-LED lighting

    • Specifications :

  • Zoom microscope objective: 0.7X-5.0X
  • Mount: 0.4X C-mount
  • Working distance: 4-1/8" (105mm)
  • Field of view: 1/2"x11/16" (12.9mm X 17.1mm) to 5/64"x3/32" (1.8mm X 2.4mm)
  • Power input: 110-240V, 50-60HZ, auto switching
  • Metal stand dimension: 13"x10"
  • Pillar: 11" (280mm) long

    • Camera Specifications:

  • Sensor: Aptina MT9T001 (color)
  • Sensor Type: CMOS
  • Sensor Size: 6.55x4.92mm (1/2" class)
  • Pixel Size: 3.2μm
  • Resolution: 3.1MP
  • Sensitivity: 1V/lux-sec
  • Dynamic Range: 61dB
  • Signal-to-Noise Ratio: 43dB
  • Frame Rate: 83fps @ 680x510, 43fps @ 1024x768, 12fps @ 2048x1536
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

    • Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS X, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

    • Packing List :

  • One monocular zoom microscope
  • One focusing rack
  • One pillar plate stand
  • One dust cover
  • One 96-LED Ring Light
  • One lighting control module
  • One 3.1 USB 2.0 camera
  • One USB 2.0 cable
  • Shipping Weight: 16 lbs
