AmScope H800-96S-AF22 H800 Series Auto-focus HDMI Digital Inspection Microscope 0.7X-5X Zoom 1080p 60fps 2MP + Ring Light and C-mount Lens

  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
AmScope H800-96S-AF22 H800 Series Auto-focus HDMI Digital Inspection Microscope 0.7X-5X Zoom 1080p 60fps 2MP + Ring Light and C-mount Lens
Click to zoom
  • Brand:AmScope
  • Part #:H800-96S-AF22
  • Model #:H800 Series
Factory Warranty
Warranty
Condition
Condition: new
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

Key Features:

  • Zoom magnification power offering sharp images
  • Metal framework with solid base plate
  • 0.7X-5.0X zoom objective
  • C-mount lens
  • Long working distance
  • Includes autofocus 1920x1080p HDMI camera with built-in recording

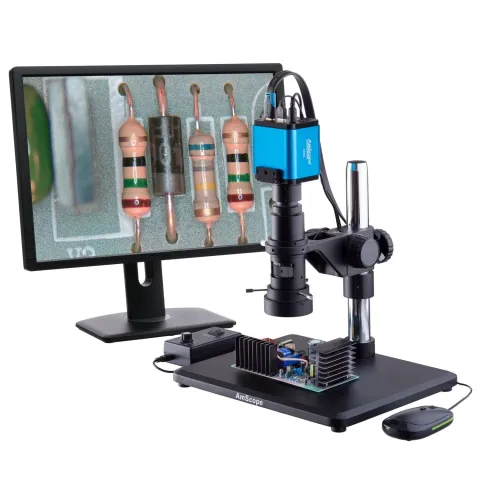

This is a highly-versatile auto-focus inspection system with multi-function imaging. The ultra-sharp 0.7X-5X zoom lens is ideal for quality-control inspection and repair. The 96-LED ring-light provides bright, low-heat, even illumination.

The auto-focus camera adds a new level of efficiency, keeping irregular objects in focus without making constant adjustments. Real-time, lag-free video can be viewed over HDMI at 1080p resolution and 60fps. The highly-sensitive sensor continues to provide sharp images in lower light. Integrated software allows you to record video and photos without the need for a PC. The included mouse lets you navigate through imaging and editing controls. For use with a PC, the camera can connect through wi-fi, and all functions can be controlled through the included photomicroscopy software. Measurement tools are provided for image-analysis and QC work.

Features:

  • 0.7X-5.0X zoom objective
  • C-mount lens
  • Long working distance
  • Sharp images over a super wide field view
  • Stable, all-metal pillar-stand
  • Cool, even 96-LED lighting
  • Auto-focus 1080p multi-function camera with built-in recording

    • Microscope Specifications :

  • Zoom microscope objective: 0.7X-5.0X
  • Mount: 0.4X C-mount
  • Working distance: 4-1/8" (105mm)
  • Field of view: 1/2"x11/16" (12.9mm X 17.1mm) to 5/64"x3/32" (1.8mm X 2.4mm)
  • Power input: 110-240V, 50-60HZ, auto switching
  • Metal stand dimension: 13"x10"
  • Pillar: 11" (280mm) long

    • Camera Specifications:

  • Sensor: Sony IMX185 (color)
  • Sensor Type: CMOS
  • Sensor Size: 1/1.9" class (7.20 x 4.05mm)
  • Pixel Size: 3.75
  • Sensitivity: 1120mV @ 1/30s
  • Binning: 1x1
  • Exposure Times: 0.06 - 918 ms
  • Still Resolution: 2MP
  • Video Resolution: 1080p
  • Frame Rate: 60fps @ 1920x1080 (HDMI), 25fps @ 1920x1080 (WiFi)
  • Video File: ASF 1080p 30fps
  • Connectivity: HDMI, WiFi
  • Wifi Protocol: 802.11n 150Mbps
  • Wifi Users: up to 6
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  • Mounting Sizes: C-mount
  • Power: 12V, 1A

    • Packing List :

  • One monocular zoom microscope
  • One focusing rack
  • One pillar plate stand
  • One dust cover
  • One 96-LED Ring Light
  • One lighting control module
  • One camera body
  • One USB mouse
  • HDMI cable
  • power supply
  • Shipping Weight: 16 lbs
    • ⚠️ Attention CA Residents: Prop 65 Warning
