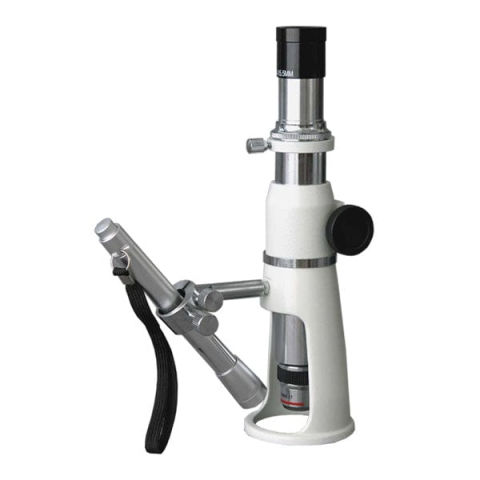

AmScope H2510 Monocular Stereo Microscope 20X-50X-100X Magnification Stand / Shop / Measuring + Pen Light

AmScope Monocular Stereo Microscope 20X-50X-100X Magnification Stand / Shop / Measuring + Pen Light

Features:

• 20X, 50X & 100X high quality widefield shop microscope
• Precise optics with measuring reticle offer clear images
• Combines compact design and precise optics together
• Portable pen light powered by batteries

This is a brand new advanced shop measuring microscope that offers 20X, 50X and 100X magnification settings. Combining compact design and precision optics, it is an ideal shop tool. This microscope has exceptional lens and gives clear images with flat field of view. WF10X eyepiece with direct reading reticle (no calibration required) shows metric scales and allows for precise measurement. Adjustable penlight makes it versatile. This microscope system offers high quality clear images and unbeatable low price.

Features :

• An advanced shop measuring microscope offering three magnification settings
• 20X, 50X and 100X magnification settings.
• Built-in scale showing millimeters (0.1mm Graduation).
• Adjustable pen light.
• Full metal body.
• Manufactured under ISO 9001 Quality Control Standard.
• Excellent Five (5) Year Factory Warranty.

Specifications :

• Total Magnification: 20X, 50X & 100X
• Power of Eyepiece: 10X
• Power of Objectives: 2X, 5X & 10X
• Reading Graduation: 0.05mm, 0.02mm & 0.01mm under 20X, 50X & 100X, respectively
• Field of View: 9mm (under 20X)
• Focusing Range: 30mm
• Diameter of Viewing Field: 17mm
• Reticle of Eyepiece: 0.1 micrometer
• Illumination System: pen lamp with two AA batteries
• Overall Size: 65mm (2-1/2") base diameter x 250mm (9-7/8") height
• Shipping Weight: 8 lbs

Shipping List :

• One Shop Microscope Body
• One Widefield 10X Eyepiece with Reticle Graduated in 100 Units
• One 2X Achromatic Objective
• One 5X Achromatic Objective
• One 10X Achromatic Objective
• One Pen Light
• User's Manual Download
• Shipping Weight: 8 lbs
