Overview

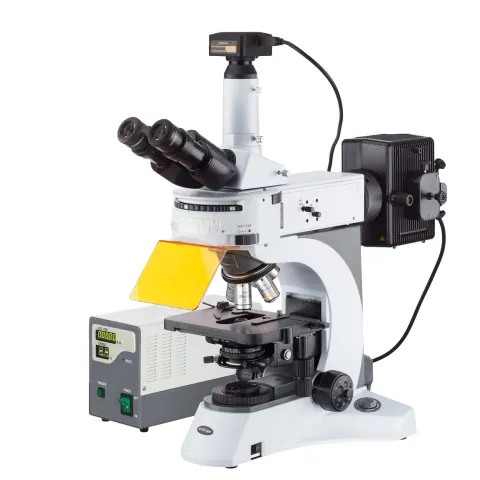

AmScope FM820 Series Upright Fluorescence Trinocular Compound Microscope 40X-1000X Magnification with Rotating Multi-filter Turret and 12MP Color CCD Camera
- An infinity-corrected upright fluorescence microscope with a rotating 6-filter turret
- Includes 4 excitation filter-blocks: ultraviolet, violet, blue, and green
- Five magnification levels from 40X to 1000X
- High-output 100W Mercury-vapor lamp
- 12MP color CCD camera for low-light fluorescence applications
The FM820T is an upright fluorescence microscope with transmitted and reflected lighting, and a six-filter turret. The microscope is built around an infinity-corrected optical system with a 40X-1000X magnification range, and Koehler diascopic and episcopic illumination. The powerful 100W, wide-spectrum, mercury-vapor episcopic illuminator uses a rotary filter-selector which can house up to six fluorescence filter-blocks; already included are ultraviolet, violet, blue, and green excitation blocks. The sub-stage illuminator uses a 30W halogen lamp with field-lens and diaphragm for even, high-contrast lighting.
The backwards, quintuple nosepiece holds five plan-achromatic objective lenses, including: 4X, 10X, 20X, 40X, and 100X (oil). The Siedentopf-design head features a 30° incline, and a 48-75mm interpupillary-adjustment range. A trinocular photo-port provides a stable, dedicated mount for an imaging system. The microscope uses coaxial coarse and fine focus-adjustment, as well as coaxial control over X and Y translation of the 7.2" x 5.6" stage.
The 12MP color CCD digital camera and software suite provide a high-resolution imaging solution for fluorescence microscopy. The 1" format CCD sensor balances resolution and sensitivity with its 3.1μm pixels, favoring higher resolution while retaining moderate sensitivity. The camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Fluorescence
| Filters | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ||||||||||||||||||||||||||||||||||||
| Mercury HBO Excitation | ||||||||||||||||||||||||||||||||||||
Mercury HBO lamps produce a wide spectrum of wavelengths, including ultraviolet. While this fluorescent light-source can excite fluorophores throughout its entire spectrum, there are peak wavelengths with optimal output. Some fluorophores may emit weak signals despite falling within filter specifications.
| ||||||||||||||||||||||||||||||||||||
Specifications
| Optical System | Infinity-corrected |
| Head | Trinocular, 30 ° incline, 360 ° rotatable |
| Interpupillary Adjustment | Compensation-free gemel, 48-75mm |
| Eyepieces | Plan 10X, high-eyepoint, FN 22mm, 30mm mount |
| Photo-port | 23mm, compatible with reduction lenses |
| Nosepiece | Quintuple reversed |
| Objective Lenses | 4X, 10X, 20X, 40X (spring), 100X (spring, oil) |
| Focusing System | Coaxial coarse and fine focus, upper limit-stop, tension-control |
| Stage | Double-layer mechanical 185mm x 142mm |
| X-Y Translation Range | 75mm x 55mm |
| Sub-stage Condenser-holder | Rack-and-pinion, centerable |
| Condenser | Achromatic swing condenser, NA0.9/0.25 |
| Transmitted Illumination | 30W halogen, continuous adjustment |
| Fluorescence Excitation Illumination | 100W mercury-vapor HBO arc-lamp |
Objective Lenses
| Magnification | Corrections | NA | Working Distance | Cover-glass Thickness |
|---|---|---|---|---|
| 4X | Plan achromatic | 0.10 | 28mm | 0.17mm |
| 10X | Plan achromatic | 0.25 | 10mm | 0.17mm |
| 20X | Plan achromatic | 0.40 | 5.1mm | 0.17mm |
| 40X | Plan achromatic | 0.65 | 0.7mm | 0.17mm |
| 100X | Plan achromatic | 1.25 | 0.18mm | 0.17mm |
Camera Specifications
Specifications
| Sensor Specifications | |
| Model | Sony ICX834AQG (color) |
| Sensor Type | interline CCD |
| Sensor Optical Format | 1" |
| Active Pixels | 12.1M (4284 x 2836) |
| Pixel Size | 3.1μm x 3.1μm |
| Active Sensor Area | 13.28mm x 8.79mm |
| Shutter | global shutter |
| Sensitivity | 420mV @ 1/30s (f/5.6) |
| Spectral Response | 380-650nm with IR-cut filter |
| Other Camera Specifications | |
| Binning | 1x1, 2x2 |
| Video Capture Framerate | 3.6fps @ 4284x2836 3.6fps @ 2124x1418 |
| Photo Capture Resolution | 4284x2836 2124x1418 |
| Connectivity | USB 3.0 |
| Lens-mount | C-mount |
| Compensating Lens | 1X (optional) |
| Power | 5VDC over USB 3.0 |
| Operating Temperature | -10-50°C |
| Operating Humidity | 30-80% |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
| Features |
|
Packing List:
- One trinocular head
- One microscope body
- One photo port assembly
- Five objective lenses: 4X, 10X, 20X, 40X, 100X
- One pair 10X eyepieces
- One stage assembly
- One swing condenser
- One halogen illuminator assembly
- One episcopic illuminator
- One episcopic lamp housing
- One power supply for episcopic illuminator
- One eye shield
- Two AC power cords (US and Canada standard)
- One hex driver
- One dust cover
- One sample immersion oil
- One USB 3.0 CCD Fluorescence Digital Camera
- One USB 3.0 Cable
- One C-Mount
