Overview

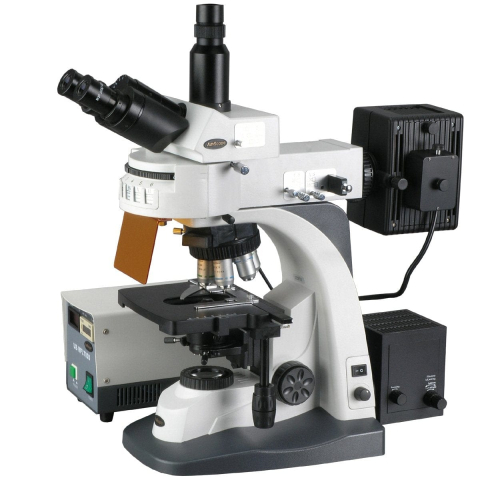

This is a brand professional trinocular Infinity Plan Epi-fluorescent microscope. It comes with infinity-corrected, plan-fluor objectives, extreme widefield eyepieces, 30° inclined trinocular head, 30W transmitted halogen light and 100W epi-fluorescence illumination. The microscope configures five (5) wave bands, B, G, BV, V and U. It is a perfect microscope for the applications in biology, medicine, immunology, oncology, genetics, and materials science.

Optics

The infinity-corrected optical system eliminates optical errors and ensures highly precise images. The sextuple objective turret provides instant access to 4 magnification levels and provides two open ports for additional lenses. This allows you to efficiently move through magnifications from 40X to 400X. Additional 25X eyepieces expand the maximum magnification to 1000X with 7 unique levels. These high-quality lenses are semi-apochromatically corrected for superior optical corrections and transmittance, with planatic flat-field correction to provide edge-to-edge sharpness.

Features:

  • A professional extreme widefield infinity-corrected epi-fluorescent microscope!
  • Perfect for applications in biology, medicine, immunology, oncology, genetics, and materials science
  • Infinity-corrected plan-fluor objectives
  • Five (5) wave bands: B, G, BV, V and U
  • Upright photo port for photographic/video capability
  • Fully coated optical system with high resolution
  • Diopter adjustment on ocular
  • Extra large 3-D double layer mechanical stage with stain resistant finish
  • Low position coaxial stage movement control knobs
  • Coaxial coarse & fine focusing with tension control
  • Built-in 30 Watt halogen illumination system with variable brightness
  • 100W ultra-high pressure mercury-vapor fluorescent epi-illumination
  • Symmetrical focusing controls
  • Adjustable interpupillary distance
  • Rugged cast alloy frame and stand with stain resistant enamel finish

    • Fluorescence

    Filters
    Filter SetExcitation FilterEmission Filter
    UV320-380nm420nm
    V380-420nm450nm
    BV400-440nm470nm
    B450-490nm520nm
    G510-560nm590nm

    Specifications

  • Head: 30 degree inclined compensation free trinocular head
  • Nosepiece: reversed sextuple
  • Eyepiece: 10X, 25X
  • Objective: Infinity plan fluor objectives: 4X/NA 0.15, 10X/NA 0.35, 20X/NA 0.6, 40X(S) /NA 0.75
  • Interpupillary Distance: 2"-3" (50mm-75mm)
  • Mechanical stage: two-layer; size: 7.10"x6.30"
  • (180mm×160mm); traveling range: 3.15"x1.97" (80mm×50mm)
  • Condenser: N.A.1.25 Abbe condenser with iris diaphragm and filters
  • Focus: coaxial coarse & fine rack & pinion focusing system with tension control; fine focusing scale value 0.000079" (0.002mm)
  • Transmitted illumination: halogen bulb 12V/30W, adjustable brightness
  • Epi-Fluorescent illumination: 100W ultra-high pressure mercury; digital display mercury lamp constant power
  • Power supply: 110VAC 60Hz
  • Fluorescence attachment: G, B, BV, V, U wave band

    • Objective Lenses

    MagnificationCorrectionsNACover-glass Thickness
    4XPlan fluor0.150.17mm
    10XPlan fluor0.350.17mm
    20XPlan fluor0.600.17mm
    40XPlan fluor0.750.17mm

    Packing List:

  • Trinocular compensation-free head
  • Microscope body with frame, base and illumination system
  • Four plan fluor objectives, 4X, 10X, 20X & 40X
  • One pair 10X eyepieces
  • One pair 25X eyepieces
  • Top light house
  • Fluorescent illumination power box
  • 30W halogen bulb
  • 100W Mercury bulb
  • Dust cover
  • Color filters
  • Two power cords
