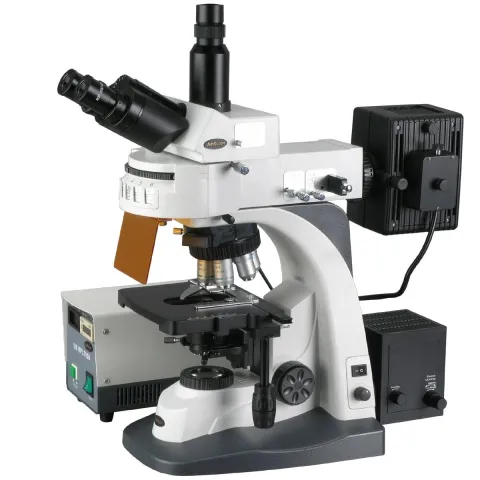

AmScope FM800TB-MF2003C FM800 Series Epi-fluorescence Trinocular Compound Microscope 40X-800X Magnification with 20MP USB 3.0 Cooled

FM800 Series Epi-fluorescence Trinocular Compound Microscope 40X-800X Magnification with 20MP USB 3.0 Cooled C-mount Camera

Key Features:

• 40X to 800X expanded magnification range using a reversed lens turret and additional 20X eyepieces for six unique settings.
• Professional infinity plan epi-fluorescent microscope with five (5) wave bands: B, G, BV, V and U
• Infinity plan-fluor objectives
• Sturdy metal framework with coaxial coarse & fine focusing
• Powerful 30W variable-intensity transmitted illumination, and 100W epi-fluorescence illumination
• Trinocular port for adding photo/video capability
• High-resolution 20MP back-illuminated CMOS camera with active cooling for reduced noise-floor
• Professional software suite for Windows with advanced imaging functions and fluorescence tools. Lite version for Mac and linux

This is a brand new professional trinocular Infinity Plan Epi-fluorescent microscope. It comes with infinity-corrected, plan-fluor objectives, extreme widefield eyepieces, 30° inclined trinocular head, 30W transmitted halogen light and 100W epi-fluorescence illumination. The microscope configures five (5) wave bands, B, G, BV, V and U. It is a perfect microscope for the applications in biology, medicine, immunology, oncology, genetics, and materials science.

Optics

The infinity-corrected optical system eliminates optical errors and ensures highly precise images. The sextuple objective turret provides instant access to 4 magnification levels and provides two open ports for additional lenses. This allows you to efficiently move through magnifications from 40X to 400X. Additional 20X eyepieces expand the maximum magnification to 800X with 6 unique levels. These high-quality lenses are semi-apochromatically corrected for superior optical corrections and transmittance, with planatic flat-field correction to provide edge-to-edge sharpness.

Features:

• A professional extreme widefield infinity-corrected epi-fluorescent microscope!
• Perfect for applications in biology, medicine, immunology, oncology, genetics, and materials science
• Infinity-corrected plan-fluor objectives
• Five (5) wave bands: B, G, BV, V and U
• Upright photo port for photographic/video capability
• Fully coated optical system with high resolution
• Diopter adjustment on ocular
• Extra large 3-D double layer mechanical stage with stain resistant finish
• Low position coaxial stage movement control knobs
• Coaxial coarse & fine focusing with tension control
• Built-in 30 Watt halogen illumination system with variable brightness
• 100W ultra-high pressure mercury-vapor fluorescent epi-illumination
• Symmetrical focusing controls
• Adjustable interpupillary distance
• Rugged cast alloy frame and stand with stain resistant enamel finish

Fluorescence

Digital Imaging

The 20MP TEC camera uses a cutting-edge back-illuminated CMOS sensor for high resolution and high gain. The camera is equipped with a software-controllable thermoelectric cooling-system for regulating its temperature and minimizing noise during image-capture. The microscopy software suite allows you to view a live video feed, and capture photos and videos with ease, as well as performing advanced funtions like image stitching and compositing. The Windows version is packed with advanced features for specialized applications incuding cell-counts, fluorescence, measurements, and more. Lite versions are available for Mac and Linux.

Packing List:

• Trinocular compensation-free head
• Microscope body with frame, base and illumination system
• Four plan fluor objectives, 4X, 10X, 20X & 40X
• One pair 10X eyepieces
• One pair 20X eyepieces
• Top light house
• Fluorescent illumination power box
• 30W halogen bulb
• 100W Mercury bulb
• Dust cover
• Color filters
• Two power cords
• One C-mount TEC USB camera
• One power adapter
• One AC power cord (North America plug)
• One USB 3.0 cable
• One software CD
• One heavy-duty case
