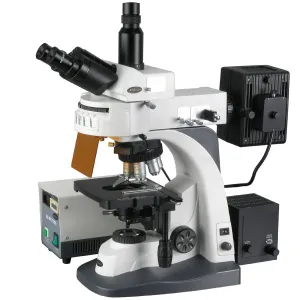

AmScope FM800T FM800 Series 30W Infinity Plan Extreme Widefield EPI-Fluorescent Trinocular Compound Microscope with Five Wave Bands and Optional Digital Camera
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews

- $6,121.00 / Each
- Brand:AmScope
- Part #:FM800T
- $6,121.00
Overview
AmScope FM800 Series 30W Infinity Plan Extreme Widefield EPI-Fluorescent Trinocular Compound Microscope 40X-400X Magnification with Five Wave Bands
- 40X to 400X magnification range using a reversed lens turret for four unique settings.
- Professional infinity plan epi-fluorescent microscope with five (5) wave bands: B, G, BV, V and U
- Infinity plan-fluor objectives
- Sturdy metal framework with coaxial coarse & fine focusing
- Powerful 30W variable-intensity transmitted illumination, and 100W epi-fluorescence illumination
- Trinocular port for adding photo/video capability
This is a brand new professional trinocular Infinity Plan Epi-fluorescent microscope. It comes with infinity-corrected, plan-fluor objectives, extreme widefield eyepieces, 30° inclined trinocular head, 30W transmitted halogen light and 100W epi-fluorescence illumination. The microscope configures five (5) wave bands, B, G, BV, V and U. It is a perfect microscope for the applications in biology, medicine, immunology, oncology, genetics, and materials science.
Optics
The infinity-corrected optical system eliminates optical errors when using filters and other in-line components, ensuring highly precise images. The sextuple objective turret provides instant access to 4 magnification levels and provides two open ports for additional lenses. This allows you to efficiently move through magnifications from 40X to 1000X. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.
Features:
Fluorescence
| Filters | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Specifications
Objective Lenses
| Magnification | Corrections | NA | Cover-glass Thickness |
|---|---|---|---|
| 4X | Plan fluor | 0.15 | 0.17mm |
| 10X | Plan fluor | 0.35 | 0.17mm |
| 20X | Plan fluor | 0.60 | 0.17mm |
| 40X | Plan fluor | 0.75 | 0.17mm |
