AmScope Fluorescence Kit Epi-illumination System for Compound Microscopes
- Fluorescence epi-illuminator with blue and green excitation bands.
- Compatible with B390, T390, B600, T600, T670 compound microscopes
- 100W wide-spectrum mercury light-source

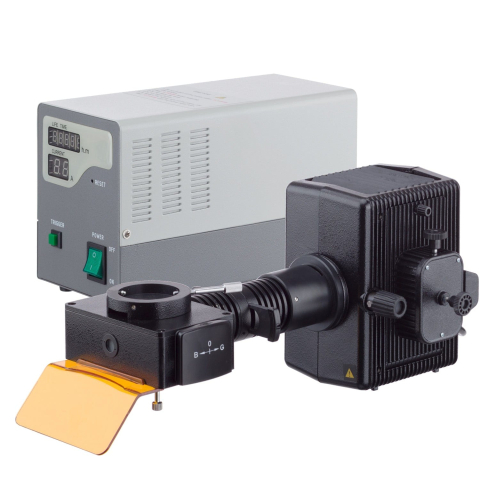

This is fluorescence epi-illumination system for compound microscopes. The system includes a 100W wide-spectrum mercury lamp, and green and blue filter blocks. Compatible with B390, T390, B600, T600, and T670 compound microscopes.
Features & Specifications:
A complete EPI-fluorescent kit100W HBO ultra hi-voltage spherical mercury lampBlue & green excitationThree-position fluorescent filter slider assembly for blue, green, and brightfield microscopy220V/110V (Interchangeable) external digital power supply (100W DC)Easy control design for centering arc of the mercury lampFluorescent light condenser with moving-control knobFluorescent light field diaphragm with centering control adjustmentThree-setting fluorescence excitation light path control dial: no light, partial light, full lightUltraviolet-blocking eye-shield includedExcitation Filters: 490nm (blue), 545nm (green)Dichroic Mirrors: 510nm (blue), 580nm(green)Barrier Filters: 530nm (blue), 590nm (green)Manufactured under ISO 9001 Quality Control StandardNet Weight: 22 lbsShipping Weight: 30 lbsContents:
One episcopic illuminator with blue and green filtersOne 100W power supplyTwo mercury-vapor bulbsTwo fusesOne UV-blocking eye-shieldOne power cordOptional Accessories :
UV filter systemAuxiliary exciting filter: EX450-490
